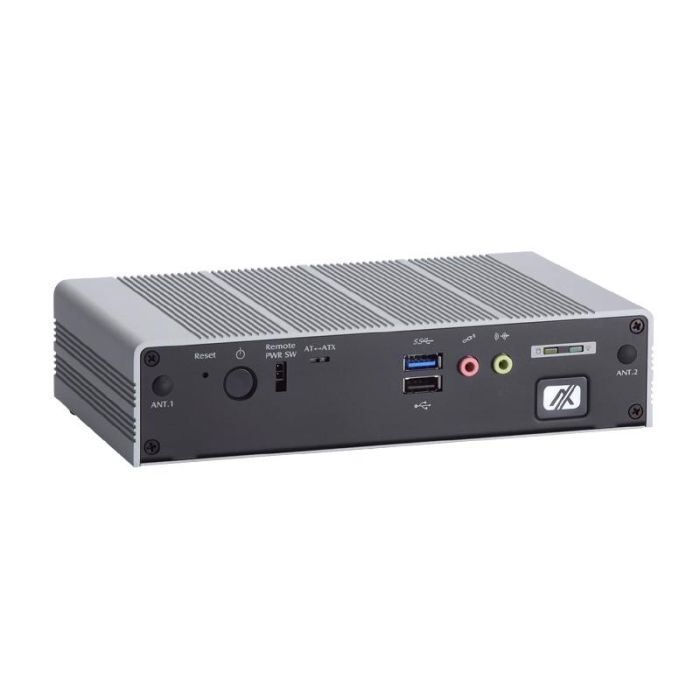

eBOX625-853-FL Fanless Embedded System with Celeron N3160

A$0.00

In stock

SKU

eBOX625-853-FL

Fanless Embedded System with Intel Celeron Processor N3160, VGA, HDMI, 4 COM, 2 GbE LANs, 4 USB, and 2 PCI Express Mini Card Slots

Key Features:

Intel Celeron processor N3160 2.24 GHz (Braswell)
HDMI and VGA with dual-view supported
Supports 4 COM and 4 USB
2 GbE LAN supporting WoL, Teaming, and PXE
2 PCI Express Mini Card slots for WLAN/WWAN/mSATA
-20°C to +60°C operating temperature range
Intel® Virtualization Technology (Intel® VT-x)

Details

The eBOX625-853-FL is a wide temperature (-20°C to +60°C) industrial fanless embedded PC which supports Intel Celeron N3160 quad core CPU. It allows a maximum 8GB DDR3L SO-DIMM memory, HDMI and VGA displays with up to 4k resolution (HDMI), three RS-232 and one RS-232/422/485 ports, three USB3.0 and one USB2.0 ports, two Gigabit Ethernet LAN ports, two PCIe Mini slots

● Intel® Celeron® Processor N3160 2.24 GHz (Braswell)

● HDMI and VGA with dual view supported

● Supports 4 COM and 4 USB

● 2 GbE LANs support WoL, Teaming and PXE

● 2 PCI Express Mini Card slots for WLAN/WWAN/mSATA modules

● -20°C to +60°C operating temperature range

● Intel® Virtualization Technology (Intel® VT-x)

More Information

Brand

Axiomtek

Specifications

Standard Color	Silver-black
Construction	Aluminum extrusion and heavy-duty steel, IP40
CPU	Intel® Celeron® processor N3160 2.24 GHz (2M Cache, up to 2.24 GHz)
System Memory	1 x 204-pin DDR3L-1333/1600 SO-DIMM, up to 8GB
Chipset	SoC integrated
BIOS	AMI
System I/O Outlet	2 x 10/100/1000 Mbps Ethernet (Intel® i211-AT) 1 x RS-232/422/485 3 x RS-232 3 x USB 3.0 1 x USB 2.0 1 x Audio (Mic-in/Line-out) 1 x HDMI (4K supported) 1 x VGA 1 x Screw type VDC power input connector 1 x ATX power switch 1 x Remote power switch 1 x Reset switch 1 x AT/ATX quick switch 3 x Antenna opening 8-CH programmable DIO (optional)
Watchdog Timer	255 levels, 1 to 255 sec.
Storage	1 x 2.5” HDD drive bay (max. up 15 mm height) 1 x mSATA (enabled in BIOS setting)
Expansion Interface	1 x Full-size PCI Express Mini Card slot (PCI Express + USB signal) 1 x Full-size PCI Express Mini Card slot (PCI Express + SATA signal) 1 x SIM slot
TPM	N/A
System Indicator	1 x green LED for system power-on 1 x yellow LED for HDD active
Power Supply	Input: AC 90-264V, AC 36 W adapter with lock Output: DC 12V@3A
Operating Temperature	-20°C to +60°C (-4°F to +140°F) (with W.T. SSD/DRAM)
Humidity	10% to 95%, non-condensing
Vibration Endurance	3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
Dimensions	200 mm (7.87”) (W) x 120 mm (4.72”) (D) x 46 mm (1.81”) (H)
Weight	(net/gross) 1.2 kg (2.65 lb)/1.9 kg (4.19 lb)
Certifications	CE
EOS support	WES7, WE8S, Win 10 IoT, Linux
