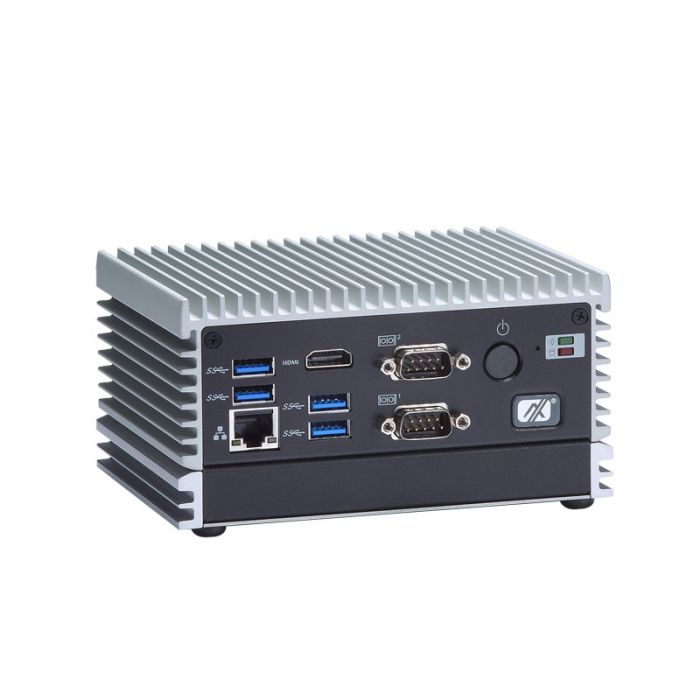

eBOX565-500-FL Fanless Embedded System

Standard Color

Silver-black

Construction

Aluminum extrusion and heavy-duty steel, IP40

CPU

Intel® Core™ i5-6300U 2.4 GHz

i3-6100U 2.3 GHz

 Celeron® 3955U 2.0 GHz (Skylake ULT SoC)

System Memory

1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB

Chipset

SoC integrated

BIOS

AMI

System I/O Outlet

1 x RS-232/422/485

1 x RS-232 2 x HDMI

2 x 10/100/1000 Mbps Ethernet (Intel® i210-AT, i219-LM)

4 x USB 3.0

2 x SMA-type antenna connector

1 x AT/ATX quick switch

1 x ATX power switch

1 x Reset button

1 x Phoenix type VDC power input connector

Watchdog Timer

255 levels, 1 to 255 sec.

Storage

1 x 2.5” SATA HDD drive bay (max. up 9.5 mm height)

1 x mSATA (enabled in BIOS setting)

Expansion Interface

1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)

TPM

N/A

System Indicator

1 x green LED for system power-on

1 x orange LED for HDD active

Power Input

9 to 36 VDC

Operating Temperature

-10°C to +50°C (+14°F to +122°F) (with W.T. SSD)

Humidity

10% to 95%, non-condensing

Vibration Endurance

3 Grms with SSD™ (5 to 500Hz, X, Y, Z directions)

Dimensions

141.6 mm (5.57") (W) x 106 (4.17") mm (D) x 73 mm (2.87") (H)

Weight

(net/gross) 1.074 kg (1.76lb)/1.67 kg (3.68lb)

Certifications

CE

EOS Support

Win 10 IoT, WE8S, Linux
