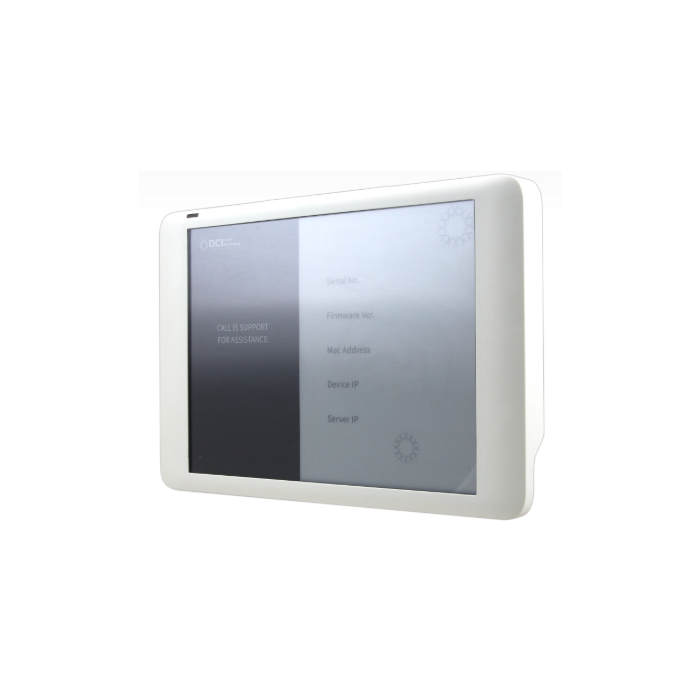

EBC-07R1 - 7.8" E Ink Bedside Card

A$0.00

In stock

7.8” Eink panel with 1872*1404 pixels, Display colors – black and white, 2.4GHz WiFi (IEEE 802.11 b/g/n) standard, Operation with six AAA batteries, Support external USB power

Details

7.8” Eink panel with 1872*1404 pixels, Display colors – black and white, 2.4GHz WiFi (IEEE 802.11 b/g/n) standard, Operation with six AAA batteries, Support external USB power

More Information

Specifications

System
MCU	CC3200

Panel
LCD Panel	7.8" E Ink Black and White
Pixel pitch	1872 x 1404
Touch Type	Cover Lens only

External I/O
USB Port	1 USB Port for F/W update and provide external USB power
Wireless LAN Antenna	Onboard PCB Antenna

Mechanical
Color	White

Reliability
Operating Temperature	0 ~ 40 C
Operating Humidity	5%~90% relative humidity, non-condensing
Storage Temperature	-20 ~ 60 C
Packaging Drop Test	80cm, 4 corners, 2 faces

Mechanical & Environmental
Dimensions(W x L x D)	138mm 200mm 18mm
Vibration Test	1Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test	10Grms, IEC 60068-2-27, Half Sine, 11ms
Dust and Rain Test	Front panel IP65

Certifications
Certification Information	NCC , FCC

Power Requirement
Battery	6 x AAA batteries

Specification
Frequency	2.4GHz WiFi (IEEE 802.11 b/g/n) standard

Description

7.8” Eink panel with 1872*1404 pixels, Display colors – black and white, 2.4GHz WiFi (IEEE 802.11 b/g/n) standard, Operation with six AAA batteries, Support external USB power

Reviews

Write Your Own Review

Downloads

Data sheet
