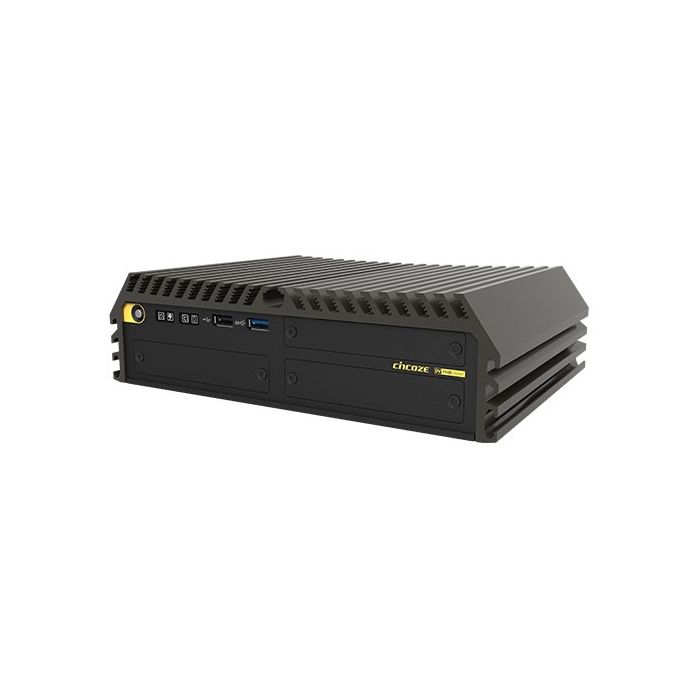

DV-1100 13/12th Gen High Performance Rugged Embedded Computer

System

Processor

13th Generation Intel® Raptor Lake-S Series CPU:
• Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W
• Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W
• Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W
• Intel® Core™ i5-13400E 10 Cores Up to 4.6 GHz, TDP 65W
• Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W
• Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W
• Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W
• Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W
• Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W

12th Generation Intel® Alder Lake-S Series CPU:
• Intel® Core™ i9-12900E 16 Cores Up to 5.0 GHz, TDP 65W
• Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W
• Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W
• Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W
• Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W
• Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W
• Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W
• Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W
• Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W
• Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W
• Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W
• Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W

Chipset

• Intel H610E Chipset

Memory

• 1x DDR5 4800MHz SO-DIMM Socket

Supports Un-buffered and non-ECC Type, Up to 32GB

BIOS

• AMI BIOS

Graphics

Graphics Engine

• Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5

• Integrated Intel® UHD Graphics 730: Core™ i3

• Integrated Intel® UHD Graphics 710: Pentium®/Celeron®

Maximum Display Output

• Supports Triple Independent Display

DP

• 1x DisplayPort Connector: 3840 x 2160 @60Hz

VGA

• 1x VGA Connector: 1920 x 1200 @60Hz

CMI Display

• 1x CMI Interface for Optional CMI-DP/CMI-HDMI Module Expansion

Audio

Audio Codec

• Realtek® ALC888, High Definition Audio

Line-out

• 1 x Line-out, Phone Jack 3.5mm

Mic-in

• 1 x Mic-in, Phone Jack 3.5mm

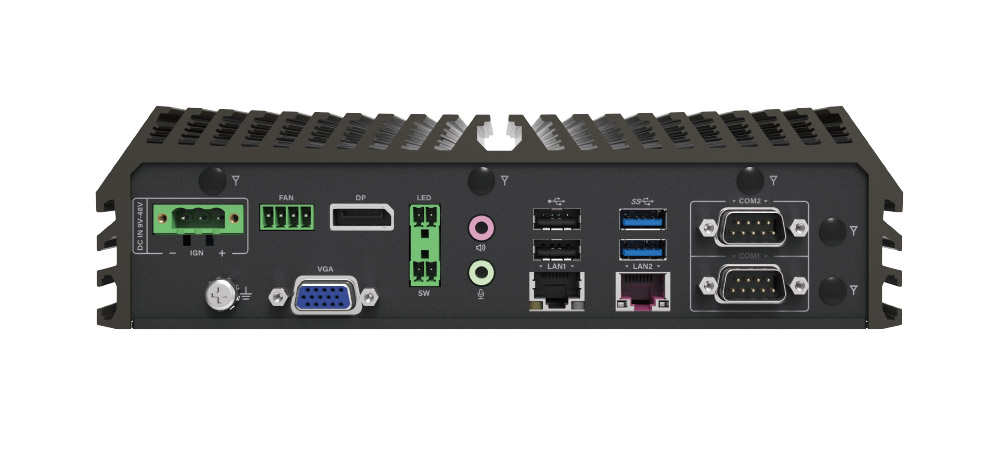

I/O

LAN

• 1x 2.5GbE LAN, RJ45

- Intel® I225

• 1x 1GbE LAN, RJ45

- Intel® I219

COM

• 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9

USB

• 1x 10Gbps USB3.2 Gen 2x1, Type A

• 2x 5Gbps USB3.2 Gen 1x1, Type A

• 3x 480Mbps USB2.0, Type A

Storage

SSD/HDD

• 1x 2.5" SATA HDD/SSD Bay (SATA 3.0)

M.2 SSD

• 1x M.2 SSD Shared by M.2 Key M Type 2280 Socket, Support PCIe Gen 4x4 NVMe SSD or SATA 3.0 SSD

• 2x M.2 SSD Shared by M.2 Key B Socket, Support PCIe Gen 3x2 NVMe SSD or SATA 3.0 SSD

Expansion

M.2 Key E Socket

• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Wireless/Intel CNVi Module Expansion

M.2 Key B Socket

• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen2 x1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion

• 1x M.2 Key B Type 2242 Socket (PCIe Gen 3x2 / USB2.0 / SATA ), Support Storage/Add-on Card Expansion

SIM Socket

• 1x Front Accessible Dual Nano SIM Socket

CMI (Combined Multiple I/O) Interface

• 1x CMI Interface for optional CMI-Display Module Expansion

• 2x CMI Interface for optional CMI-COM/DIO Module Expansion

CFM (Control Function Module) Interface

• 1x CFM IGN Interface for optional CFM-IGN Module Expansion

Other Function

External FAN Connector

• 1x External FAN Connector, 4-pin Terminal Block

(Support Smart Fan by BIOS)

Clear CMOS Switch

• 1x Clear CMOS Switch

Reset Button

• 1x Reset Button

Instant Reboot

• Support 0.2sec Instant Reboot Technology

Watchdog Timer

• Software Programmable Supports 256 Levels System Reset

Antenna Hole

• 5x Antenna Holes

Power

Power Button

• 1 x ATX Power On/Off Button

Power Mode Switch

• 1 x AT/ATX Mode Switch

Power Input

• 9 - 48VDC, 3-pin Terminal Block

Remote Power On/Off

• 1 x Remote Power On/Off, 2-pin Terminal Block

Remote Power LED

• 1 x Remote Power LED, 2-pin Terminal Block

Max. Power Consumption

• 35W CPU

  - OS Idle Mode: 87.34 W

  - Full Loading: 204.46 W

• 65W CPU

  - OS Idle Mode: 91.18 W

  - Full Loading: 307.92 W

Inrush Current (Peak)

• 35W CPU: 4.362 A@24V

• 65W CPU: 4.516 A@24V

Physical

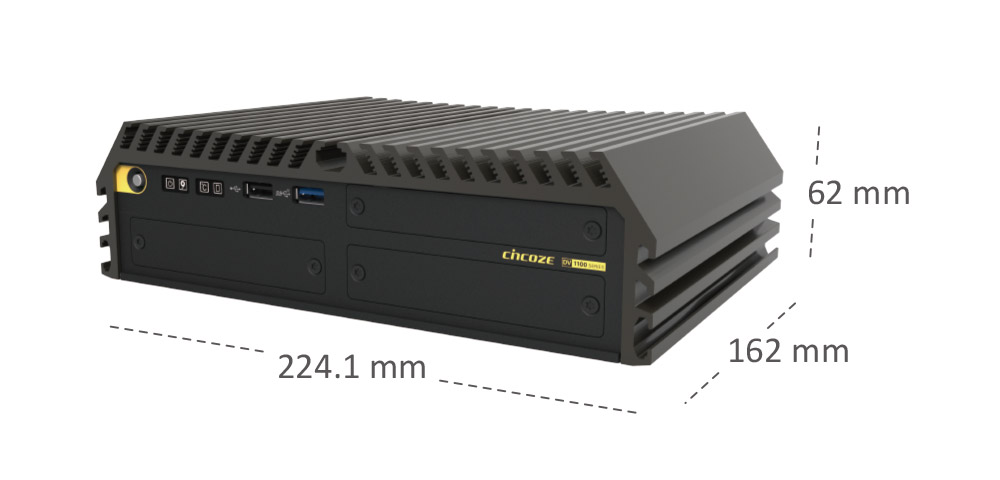

Dimension ( W x D x H )

• 224.1 x 162 x 62 mm

Weight Information

• 2.52 KG

Mechanical Construction

• Extruded Aluminum with Heavy Duty Metal

Mounting

• Wall / DIN-RAIL / VESA Mount

Physical Design

• Fanless Design

• Cableess Design

• Jumper-less Design

• Unibody Design

Reliability & Protection

Reverse Power Input Protection

• Yes

Over Voltage Protection

• Protection Range: 51~58V

•​ Protection Type: shut down operating voltage, re-power on at the preset level to recover

Over Current Protection

• 15A

CMOS Battery Backup

• SuperCap Integrated for CMOS Battery Maintenance-free Operation

MTBF

• 413,236 Hours

- Database: Telcordia SR-332 Issue3, Method 1, Case 3

Operating System

Windows

• Windows®11, Windows®10

Linux

• Ubuntu 22.04

Environment

Operating Temperature

• 35W TDP Processor: -40°C to 70°C

• 65W TDP Processor: -40°C to 55°C (With External Fan Kit)

* PassMark BurnInTest: 100% CPU, 2D/3D Graphics

(without thermal throttling)

* With extended temperature peripherals; Ambient with air flow

* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14

Storage Temperature

• -40°C to 70°C

Relative Humidity

• 95% RH @ 70°C (Non-condensing)

Shock

• MIL-STD-810H

Vibration

• MIL-STD-810H

EMC

• CE, UKCA, FCC, ICES-003 Class A

• EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only)

• EN 50155 (EN 50121-3-2 Only)

• E-mark

EMI

• CISPR 32 Conducted & Radiated: Class A

• EN/BS EN 50121-3-2 Conducted & Radiated: Class A

• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A

• EN/BS EN 61000-3-3 Voltage fluctuations & flicker

• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A

EMS

• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV

• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m

• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV

• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV

• EN/IEC 61000-4-6 CS: 10V

  (**Compliant with the standard when utilizing shielded cable.)

• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A

• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz

Safety

UL, cUL, CB, IEC, EN 62368-1
