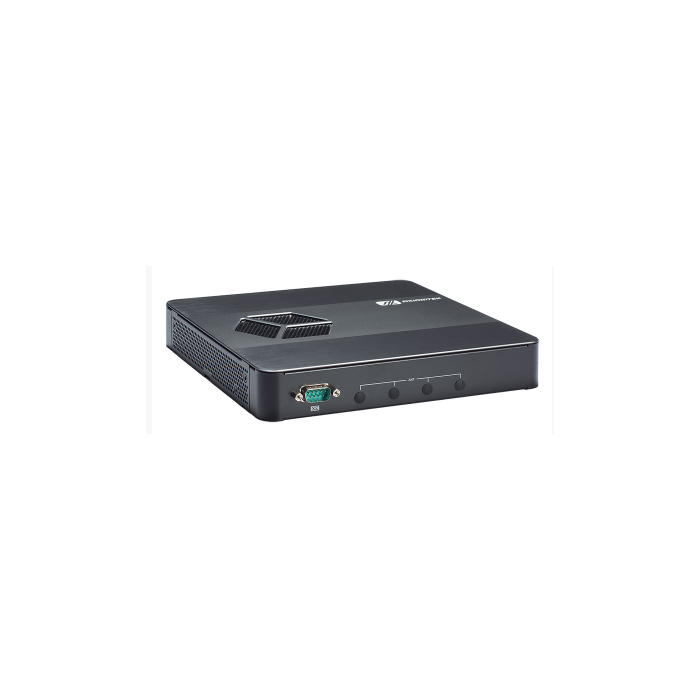

DSP500-523, 8th gen i series, 3xHDMI Media Player

A$0.00

In stock

SKU

DSP500-523

Digital Signage Player with 8th Gen Intel® Core™ i7/i5/i3 & Pentium® Processor, 3 HDMI 2.0, 4 USB and GbE LAN

Digital Signage Player with 8th Gen Intel® Core™ i7/i5/i3 & Pentium® Processor, 3 HDMI 2.0, 4 USB and GbE LAN

· 8th gen Intel® Core™ i7/i5/i3 & Pentium® processor (Coffee Lake)

· 2x DDR4-2400 SO-DIMM for up to 32GB of memory

· 3x HDMI 2.0

· 4x USB 3.1 and GbE LAN

· 1x M.2 Key E 2230 for Wi-Fi/BT

· 1x M.2 Key B 3042 for 4G LTE

· 1x M.2 Key M 2280 for storage

Brand

Axiomtek

Specifications

CPU	Intel® Core™ i7-8700T Hexa-core processor 2.4GHz 12MB Cache, TDP 35W Intel® Core™ i5-8500T Hexa-core processor 2.4GHz 12MB Cache, TDP 35W Intel® Core™ i3-8100T Hexa-core processor 2.1GHz 9MB Cache, TDP 35W Intel® Pentium® G5400T Dual-core processor 3.1GHz 4MB Cache, TDP 35W
Chipset	Intel® Q370
System Memory	2 x DDR4-2666 SO-DIMM, up to 32GB
Watchdog Timer	255 levels, 1 to 255 sec./min.
COM	1 x RS-232
USB	4 x USB 3.1
Ethernet	1 x 10/100/1000 Mbps Ethernet
Display	3 x HDMI 2.0 or 2 x HDMI 2.0
Audio	1 x Line-out
Storage	1x M.2 Key M 2280 (SATA & NVMe)
Expansion	1 x M.2 Key E 2230 for Wi-Fi/BT (optional) 1 x M.2 Key B 3042 for 4G/LTE (optional) 1 x SIM card slot
Others	1 x Device management 1 x Remote switch 1 x Screw type VDC power input 1 x VDC power input connector 4 x Antenna opening TPM 2.0
Wi-Fi	1 x M.2 Key E 2230 for Wi-Fi/BT (optional) 1 x M.2 Key B 3042 for 4G/LTE (optional) 1 x SIM card slot 4 x Antenna opening
Power Supply	+12V DC-in
Vibration Endurance	3 Grms with M.2 storage (5 - 500Hz, X, Y, Z directions)
Operating Temperature	0ºC to +45ºC (+32ºF to +113ºF)
Dimensions (W x D x H)	202 x 196 x 39 mm (7.95” x 7.71” x 1.53”)
Weight (net/gross)	TBD
Mounting	Wall mount
EOS Support	Win 10 IoT, Linux
Software Support	AMS.AXView
Certifications	CE, FCC class A

Description

Digital Signage Player with 8th Gen Intel® Core™ i7/i5/i3 & Pentium® Processor, 3 HDMI 2.0, 4 USB and GbE LAN

· 8th gen Intel® Core™ i7/i5/i3 & Pentium® processor (Coffee Lake)

· 2x DDR4-2400 SO-DIMM for up to 32GB of memory

· 3x HDMI 2.0

· 4x USB 3.1 and GbE LAN

· 1x M.2 Key E 2230 for Wi-Fi/BT

· 1x M.2 Key B 3042 for 4G LTE

· 1x M.2 Key M 2280 for storage
