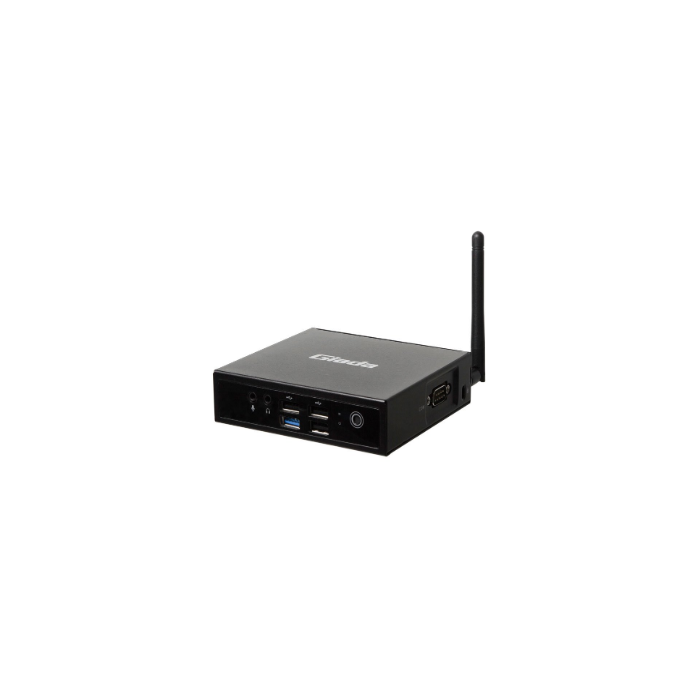

DN72 - RK3288 Quad-core A17 CPU
RK3328 Quad-core Cortex-A53 media player
RK3328 Quad-core Cortex-A53 media player
■ RK3328 Quad-core Cortex-A53 up to 1.5GHz
■ Onboard DDR3L 2GB Memory,
■ 1 x HDMI， Supporting 4K 60HZ Display
■ Onboard eMMC 16GB
■ 1 x USB3.0，2 x USB2.0，1 x USB2.0 OTG，1 x RS232
■ 1 x RJ45，1 x Mini-PCIe for 3G/4G，1 x SIM Slot
More Information
| Brand |
Giada Technology Inc. |
| Specifications |
| Processor |
CPU |
RK3288 Quad-core A17 CPU |
| Frequency |
Up to 1.8GHz |
| Chipset |
SOC |
| Memory |
Type |
DDR3L-1333MHz |
| Socket |
Onboard |
| Max Size |
2GB (Optional:1GB) |
| Graphics |
GPU |
Mali-T764 GPU |
| Graphic Engine |
4K H.264/H.265 video decoder, 1080P 60fps video decoders |
| HDMI |
1 x HDMI (Max. 4K @60Hz)Optional: VGA 1920*1080 |
| Network |
Controller |
Realtek RTL8211E Gigabit Ethernet |
| Interface |
1 x RJ45 |
| I/O |
USB |
3 x USB 2.0, 1 x USB2.0 OTG |
| Display Interface |
1 x HDMI Optional: VGA |
| LAN |
1 x RJ45 |
| Serial Port |
1 x RS232 |
| Audio |
1 x MIC-IN, 1 x AUDIO-OUT |
| Mini-PCIe |
1 x Full-size Mini-PCIe for 4G |
| SIM |
1 x SIM Slot |
| WiFi+BT on Board |
1 x WiFi Module Onboard (2.4G, IEEE802.11 a/b/g/n) Optional: WIFI 5G |
| LED Indicators |
1 x HDD LED, 1 x Power LED |
| Storage |
eMMC |
Onboard eMMC 16GB (Optional: 8GB /32GB/ 64GB) |
| JAHC Tech |
WatchDog Timer |
0~255 Second Time Out Support |
| Auto Power On |
Power Activated Automatically Start |
| RTC |
Set Up Independently Every day, A Week as a Cycle |
| Remote Control |
By IR Controller for Power On |
| Operation System |
Android |
Android5.1 |
Power
|
Power Type |
DC-IN |
| Input Voltage |
12V/2A |
Mechanical
|
Dimensions (W × D × H) |
116.6mm x 107.4mm x 30mm |
| Fanless |
Yes |
| Construction |
Metal |
| Mounting(Optional) |
Desk/Wall Mounting and VESA Mounting Kit(JT-NUC-JC530) |
| Color |
Black |
| Environment |
Operating Temperature |
0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow |
| Relative Humidity |
95%@40℃ (non-condensing) |
| Certification |
Certification |
CE, FCC |
|
| Description |
RK3328 Quad-core Cortex-A53 media player
■ RK3328 Quad-core Cortex-A53 up to 1.5GHz
■ Onboard DDR3L 2GB Memory,
■ 1 x HDMI， Supporting 4K 60HZ Display
■ Onboard eMMC 16GB
■ 1 x USB3.0，2 x USB2.0，1 x USB2.0 OTG，1 x RS232
■ 1 x RJ45，1 x Mini-PCIe for 3G/4G，1 x SIM Slot
|
