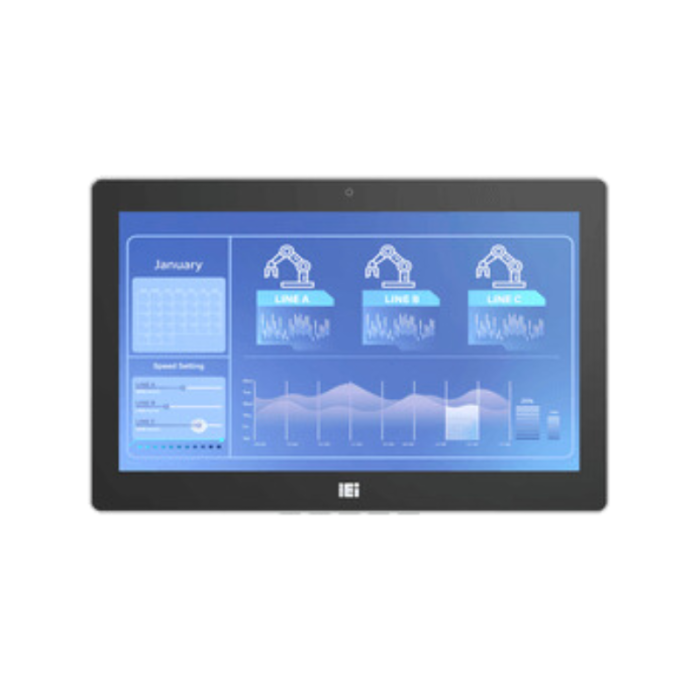

DM2-W133 13.3” IP65-Front Industrial Display

A$0.00
In stock
SKU
DM2-W133K-R10/L-R10

13.3” Latest Generation Industrial Monitor

Key Features:

  • Front OSD, easy access for setting adjustment
  • Speakers are positioned at the front, ensuring clear sound delivery
  • Supports gloved operation and waterproof protection
  • Built-in camera, ideal for AI facial recognition
  • USB 3.2 Gen1 Type-A supports 10W
  • IP65-compliant front panel with aluminium frame
  • Anti-glare and anti-UV PCAP

The DM2 series LCD monitor is the latest member of IEI’s line of sophisticated LCD designs with flat bezels. It is designed to fit industrial automation. The flat front panel provides IP65 protection, which effectively wards off dust and water. Flexible analog or digital interfaces are provided for ease of connection with a management computer.



More Information
brand IEI Integration Corp.
Specifications

Display

LCD Size

13.3” (16:9)

Brightness(cd/m2)

350

Max Resolution

1920 x 1080

Contrast Ratio

800:1

Backlight MTBF(hrs)

30000

I/O Interface

I/O Ports

1 x VGA (DB-15)

1 x HDMI

1 x DisplayPort1.2

1 x USB 3.2 Gen1 Type-B

4 x USB 3.2 Gen1 Type-A (5V2A) (Lite without)

1 x Line out

1 x 9V-36V DC jack

1 x 3-pin terminal block

Power

Power adapter

12V DC

Environment

Operating Temperature

-20°C ~ 60°C

Humidity

10% to 95%@40°C (non-condensing)

Storage Temperature

-20°C ~ 70°C

IP Level

IP 65 compliant front panel

Physical Characteristics

Colour

Black + Silver

Dimensions (LxWxH) (mm)

333.04 x 215.88 x 51.41

Cutout Dimensions

314.34 x193.55

LCD

LCD Color

16.7M

Viewing Angle (H-V)

176°/176°

Touch

Touch Screen

10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface)

Touch Controller

Capacitive:litek

Description

The DM2 series LCD monitor is the latest member of IEI’s line of sophisticated LCD designs with flat bezels. It is designed to fit industrial automation. The flat front panel provides IP65 protection, which effectively wards off dust and water. Flexible analog or digital interfaces are provided for ease of connection with a management computer.
