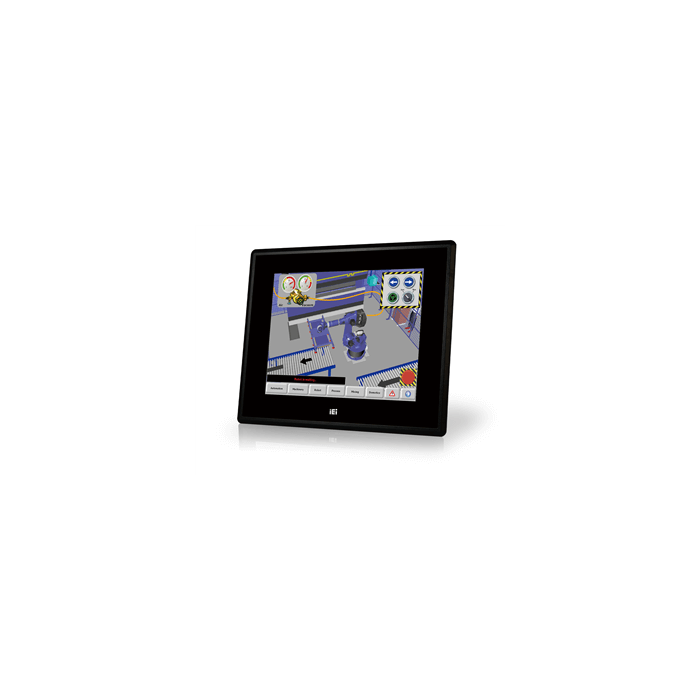

DM-F08A, 8" LCD touch, 12VDC input

A$0.00

In stock

SKU

DM-F08A

8" 500 cd/m² SVGA LCD monitor, Aluminum front panel, Black color, W/ USB resistive touch screen, 12V DC input

8" 500 cd/m² SVGA LCD monitor, Aluminum front panel, Black color, W/ USB resistive touch screen, 12V DC input, R10

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Display
Backlight MTBF(hrs)	50000
Brightness(cd/m2)	500
Contrast Ratio	20.8340277777778
LCD Size	8”(4:3)
Max Resolution	800 (W) x 600 (H)
Environment
Humidity	10% to 95% (non-condensing)
IP Level	IP 65 compliant front panel
Operating Temperature	-20°C ~ 60°C (with air flow)
Storage Temperature	-20°C ~ 70°C
I/O Interface
I/O Ports and Switches	1 x VGA (DB-15) 1 x DVI 1 x USB 2.0 (touch) 1 x RS-232 (reserved for resistive touch ATO) 1 x Lockable 12V DC jack
LCD
LCD Color	262K
Pixel Pitch (mm)	0.0675 x 0.2025
Viewing Angle (H-V)	140°/120°
Physical Characteristics
Cutout Dimensions	206 x 154
Dimensions (LxWxH) (mm)	222.2 x 182.2 x 42.7
Power
Power adapter	12V DC
Touch
Touch Controller	Penmount 6000
Touch Screen	5-wire resistive single touch window
Weight
Weight	1.33/4.5

Description

8" 500 cd/m² SVGA LCD monitor, Aluminum front panel, Black color, W/ USB resistive touch screen, 12V DC input, R10
