This product is now end of life. There might still be stock available; get in touch with us for more details or suggestions for appropriate replacements.

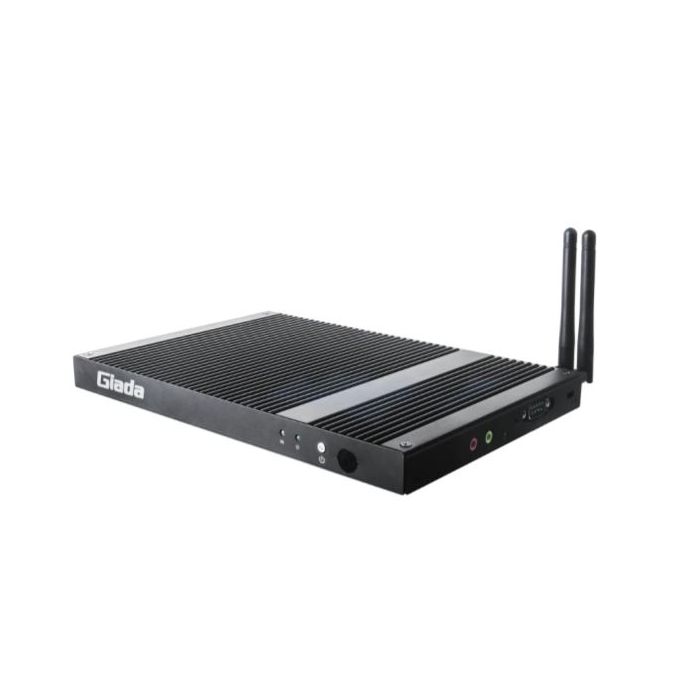

The Giada DF68 is a 20mm slimline digital signage player driven by Intel Whiskey Lake-U processors. The extensive I/O includes 1x COM, 5x USB, and 2x RJ45 ports, as well as 2 x SO-DIMM DDR4 slots for up to 32GB RAM.
2 x HDMI 2.0 (Max. 4096 x 2304@60Hz), 1 x DP (Max.4096 x 2304@60Hz)
Controller
Realtek RTL8211E Gigabit Ethernet
Interface
2 x RJ45
USB
5 x USB 3.1
Serial Port
1 x RS232
Audio
1 x MIC-IN, 1 x AUDIO-OUT
Mini-PCIe
1 x Mini-PCIe for MSATA/3G/4G
M.2
1 x M.2(2242/2280)PCIe for SSD, 1 x M.2(2230) for WiFi
SIM
1 x SIM Slot
M.2
1 x M.2(2242/2280) for SSD
WatchDog Timer
0~255 Second Time Out Support
Auto Power On
Power Activated Automatically Start
RTC
Set Up Independently Every day, A Week as a Cycle
Wake On LAN
Remote wakeup in the same LAN
Windows
Windows 10 (64bit)
Linux
Ubuntu 18.4
Dimensions
240mm x 158mm x 20mm ( 9.45″ x 6.22″ x 0.79″)
Mounting (Optional)
Desk/Wall Mounting and VESA Mouting Kit （JZ300）
Power type
DC-IN
Power Adapter
19V/3.42A
Operating Temperature
0°C ~ 45°C (32°F ~ 113°F) at 0.7m/s Air Flow
Relative Humidity
95% @ 40℃ (non-condensing)
Certification
CE, FCC
Description
The Giada DF68 is a 20mm slimline digital signage player driven by Intel Whiskey Lake-U processors. The extensive I/O includes 1x COM, 5x USB, and 2x RJ45 ports, as well as 2 x SO-DIMM DDR4 slots for up to 32GB RAM.
