Shop CV-112H/P1001 Industrial Panel PC

Details

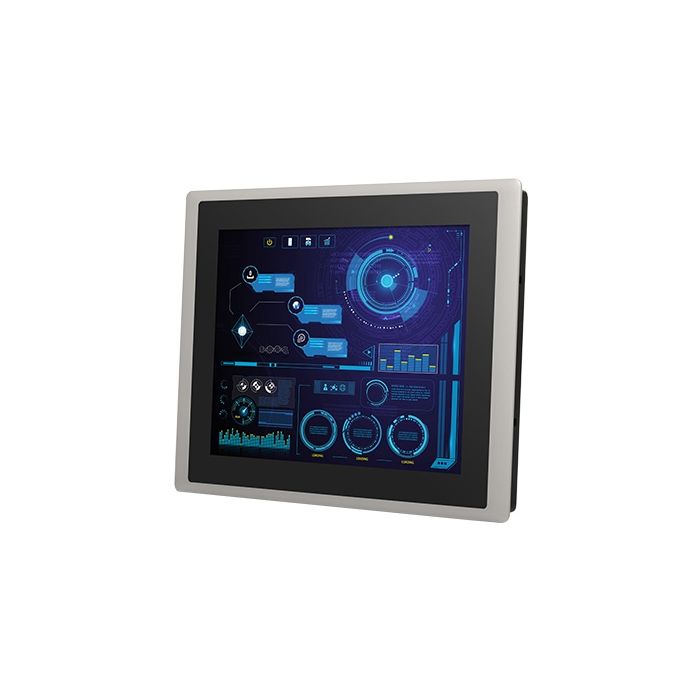

The 12.1" all-in-one panel PC offers LED backlight LCD with a resolution of up to 1024x768 (XGA) and 500 nits brightness. CV-112H/P1001 Series features a flat surface and IP65 dust/waterproof front panel. In addition, designed with an aluminium die-casting front frame with a rugged body structure that can be able to apply in industrial applications. CV-112H/P1001 Series supports Convertible Display System (CDS) technology which makes it more flexible in system maintaining and upgrading. CV-112H/P1001 Series carries a single-touch function with a resistive 5-wire touch screen or a multi-touch function with a projected capacitive touch screen. By incorporating with Intel® Atom™ E3845 processor and DDR3L memory, CV-112H/P1001 Series offers extensive I/O including 4x USB, 2x RS-232/422/485, 1x VGA, 1x DisplayPort, 4x DI / 4x DO. Besides, the panel PC also includes a 2x Universal I/O Bracket. (For P1001E only)

CV-112H/P1001 Series supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, there are 3 types of storage devices including 2.5" SATA HDD, CFast and SIM card. The accessible design of these storage devices allows quick data access and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-112H/P1001 Series can be deployed and powered for various industrial applications.

More Information

Brand

Cincoze

Specifications

Model Name		CV-112HR	CV-112HC
Display	LCD Size	12.1" (4:3)
	Max. Resolution	1024 x 768
	Brightness (cd/m2)	500
	Contrast Ratio	700 : 1
	LCD Color	16.7M
	Pixel Pitch (mm)	0.24 (H) x 0.24 (V)
	Viewing Angle (H-V)	160 / 140
	Backlight LED Life Time	50,000 hrs (LED Backlight)
Touch Screen	Touchscreen Type	Resistive 5-wire	Projected Capacitive
Physical	Dimension (W x D x H)	345 x 265.3 x 57 mm
	Weight Information	3.16 kg
	Mechanical Construction	Die-Casting Flat Surface
Power	Power Consumption	9.11W (Max.)	9.06W (Max.)
Environment	Front Panel Protection	IP 65 Compliant
	Operating Temperature	-20°C to 75°C (with Industrial Grade peripherals; Ambient with air flow)	-20°C to 80°C (with Industrial Grade peripherals; Ambient with air flow)
	Storage Temperature	-30°C to 80°C
	Relative Humidity	90% RH @ 40°C (Non-Condensing)
	EMC	CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
	Safety	UL, cUL, CB, IEC, EN 62368-1

P1001 Series

Model Name		P1001	P1001E
System	Processor	Onboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz
	Memory	1x DDR3L 1066/1333 MHz SO-DIMM Socket (un-buffered and non-ECC) Support up to 8 GB
	BIOS	AMI 64Mbit SPI BIOS
Graphics	CDS (Convertible Display System) Technology	1x Convertible Display System (CDS) Interface
	VGA	1x VGA Connector (1920x1080@60Hz)
	DP	1x DisplayPort Connector (1920x1080@60Hz)
Audio	Line-out	1x Line-out, Phone Jack 3.5mm
Audio	Mic-in	1x Mic-in, Phone Jack 3.5mm
I/O	LAN	2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210
	USB	1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A)
	Serial Port	2x RS-232/422/485 with Auto Flow Control Support, DB9
	DIO	8x Isolated Digital I/O (4in/4out)
Storage	SSD/HDD	1x 2.5” HDD/SSD Drive
	SIM Socket	1 x Front Accessible SIM Socket
	CFast	1 x Front Accessible CFast Socket
Expansion	Mini PCI Express	1x Full-size Mini PCIe Socket for Wi-Fi/GSM/Expansion Module
Expansion	Universal Bracket		2x Universal I/O Brackets
Other Function	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
	Internal Speaker	AMP 2W + 2W
	OSD Function	LCD On/Off, Brightness Up, Brightness Down
	Reset Button	1x Reset Button
Power	Power Button	1x ATX Power On/Off Switch
	Power Mode Switch	1x AT/ATX Mode Switch
	Power Input	1x 3-pin Terminal Block Connector with Power Input 9~48VDC
	Power Adapter (Optional)	1x Optional AC/DC 12V/5A, 60W
Physical	Dimension ( W x D x H )	204.5 x 149 x 37.5 mm	204.5 x 150 x 60 mm
	Weight Information	1.34kg	1.54kg
	Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
	Mounting	Wall / VESA / CDS Mounting
	Physical Design	Fanless Design Jumper-less Design
Reliability & Protection	Reverse Power Input	Yes
	Over Voltage Protection	Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover
	Over Current Protection	20A
Operating System	Microsoft® Windows®	Windows® 10, Windows® 8, Windows® 7 Windows® Embedded 8 Standard, Windows® Embedded Standard 7
Operating System	Linux	Supports by project
Environment	Operating Temperature	Ambient with Air Flow: -20°C to 70°C (with Industrial Grade Peripherals)
	StorageTemperature	-30°C to 85°C
	Relative Humidity	10%~95% (non-condensing)
	Shock	Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
	Vibration	Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
	EMC	CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz

Description

The 12.1" all-in-one panel PC offers LED backlight LCD with a resolution of up to 1024x768 (XGA) and 500 nits brightness. CV-112H/P1001 Series features a flat surface and IP65 dust/waterproof front panel. In addition, designed with an aluminium die-casting front frame with a rugged body structure that can be able to apply in industrial applications. CV-112H/P1001 Series supports Convertible Display System (CDS) technology which makes it more flexible in system maintaining and upgrading. CV-112H/P1001 Series carries a single-touch function with a resistive 5-wire touch screen or a multi-touch function with a projected capacitive touch screen. By incorporating with Intel® Atom™ E3845 processor and DDR3L memory, CV-112H/P1001 Series offers extensive I/O including 4x USB, 2x RS-232/422/485, 1x VGA, 1x DisplayPort, 4x DI / 4x DO. Besides, the panel PC also includes a 2x Universal I/O Bracket. (For P1001E only)

CV-112H/P1001 Series supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, there are 3 types of storage devices including 2.5" SATA HDD, CFast and SIM card. The accessible design of these storage devices allows quick data access and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-112H/P1001 Series can be deployed and powered for various industrial applications.

Reviews

Write Your Own Review

Downloads

Datasheet

CV-112H/P1001 Power Efficient Industrial Panel PC
