TRANSCEIVER PERFORMANCE Output power 1000mW Transmission range Up to 1500 feet (450m) indoors; Up to 20 miles (32 km) line-of-sight Data rate Up to 115.2 Kbps RF Data Rate 76.8kbps fixed Receiver Sensitivity -100dBm typical @ 76.8kbps RF Data Rate Power Consumption (@ 12 Vdc) 400mA Configuration software Easy-to-use Windows based software NETWORKING AND SECURITY Frequency band, RF Technology 902 – 928, FHSS (USA); 915-928, FHSS (Australia) Supported Network Topologies Point-to-Point, Point-to-Multipoint Channels 32 Security One byte System ID. 56-bit DES encryption key. ANTENNA RF Connector RPSMA Jack Type 1/2 Wave Dipole ELECTRICAL Electrical requirements Line voltage 100 – 120V (240V outside US); Power supply 6-foot cable, AC power connector
Description

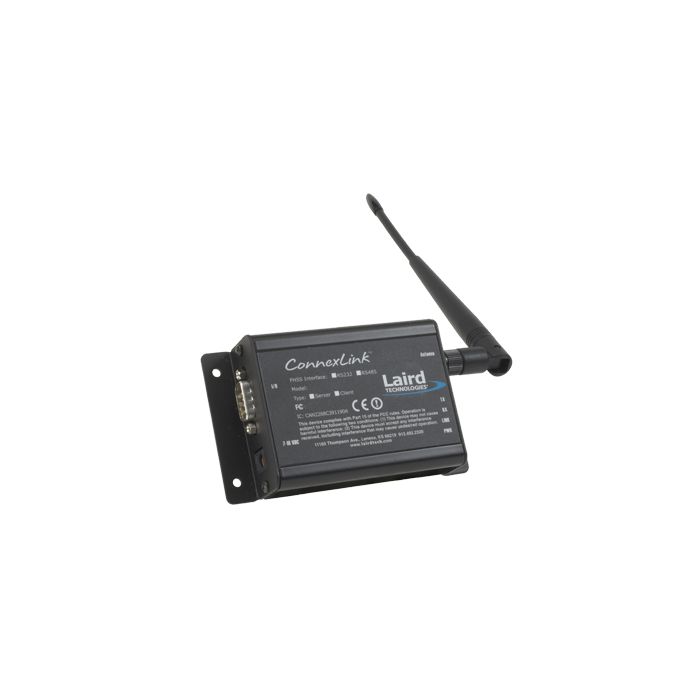

Industrial 900MHz ConnexLink
·Masterless: True peer-to-peer, each module can communicate with any other module within its range.
·API commands to control packet routing and acknowledgement on a packet-by-packet basis
·Durable Industrial grade enclosure
·Transparent operation, supports any legacy system
