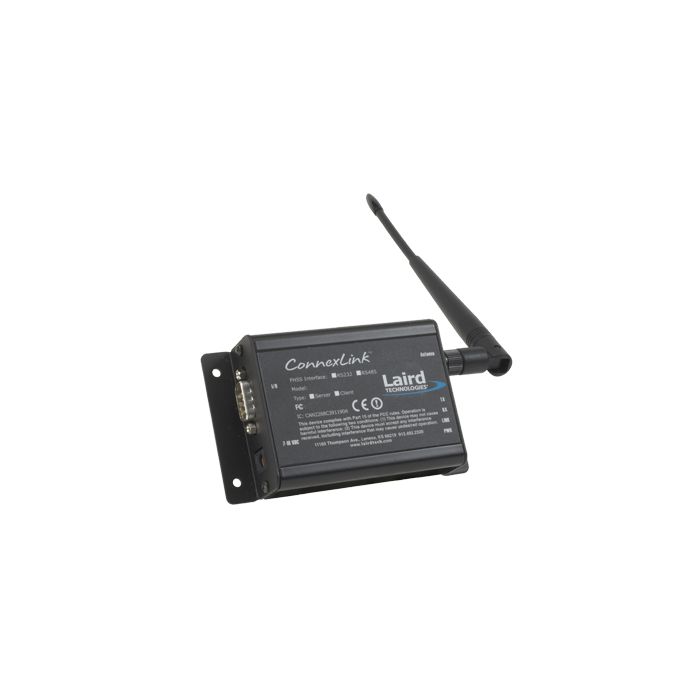

CL4490PRO

A$0.00

In stock

SKU

CL4490PRO

RF TRANSCEIVER

RF TRANSCEIVER

· Retries and Acknowledgements

· API Commands to control packet routing and acknowledgement on a packet-by-packet basis

· Frequency Hopping Spread Spectrum for security and interference rejection

· Customizable RF Channel number and system ID

· Dynamic link analysis, remote radio discovery

· Low latency and high throughput

· Continuous 76.8 kbps RF data stream

· Software selectable interface baud rates from 1200 bps to 115.2 kbps

· Advanced configuration available using AT commands

More Information
brand	Ezurio (Laird Technologies)
Specifications	Serial Interface Connector DB-9 Female RF Connector RPSMA Jack Impedance 50 ohms unbalanced Serial Interface Data Rate Baud rates from 1200 bps to 115,200 bps Power Consumption (typical) 400 mA @ 12VDC Channels 32 (USA); 7 (Australia) Supported Network Topologies Point-to-Point, Point-to-Multipoint Security One byte System ID. 56-bit DES encryption key. Interface Buffer Size Input/Output: 1600 bytes each
Description	RF TRANSCEIVER · Retries and Acknowledgements · API Commands to control packet routing and acknowledgement on a packet-by-packet basis · Frequency Hopping Spread Spectrum for security and interference rejection · Customizable RF Channel number and system ID · Dynamic link analysis, remote radio discovery · Low latency and high throughput · Continuous 76.8 kbps RF data stream · Software selectable interface baud rates from 1200 bps to 115.2 kbps · Advanced configuration available using AT commands
