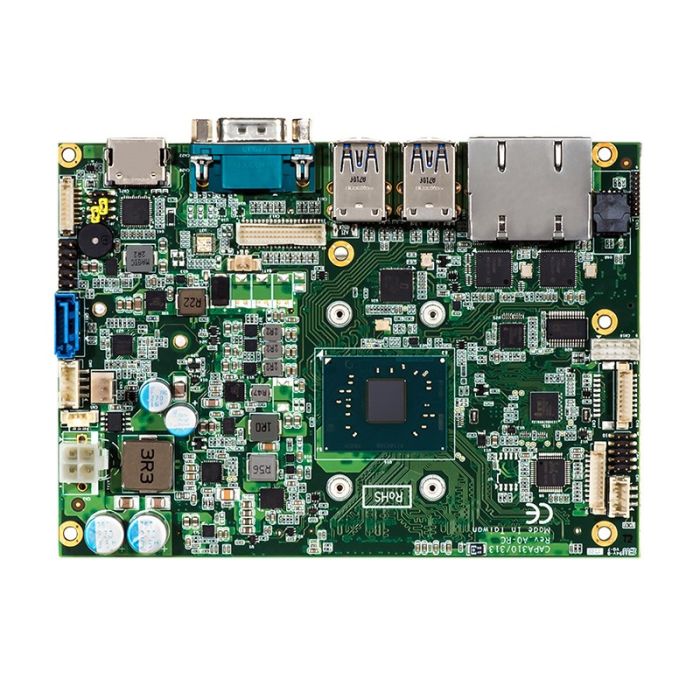

CAPA313 3.5” Embedded SBC Pentium/Celeron
3.5” Embedded SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350, LVDS, HDMI, 2 GbE LANs and Audio
CAPA313 is based on an Intel® Pentium® processor N4200 or Intel® Celeron® N3350 (codename: Apollo Lake). This 3.5" embedded board is designed for operational stability in harsh environments supporting a wide operating temperature range from -20°C to +70°C. It also offers wide range DC input of 12V to 24 for various industrial environments. Providing rich I/O connectors, stunning graphical performance and an emphasis on expandability. The CAPA313 has one PCI Expess Mini Card slot for 3G/4G, GPS, Wi-Fi and Bluetooth connection and comes with one RS-232/422/485, one RS-232, two USB 2.0, four USB 3.0, eight-channel digital I/O, audio, LVDS, HDMI, VGA (optional) and dual Gigabit LANs with Intel® i211AT Ethernet controller. It also features one SATA-600 socket and one mSATA interface for storage devices. To ensure reliable operation, the 3.5” embedded SBC supports watchdog timer and hardware monitoring features.
Intel® Pentium® processor N4200/Celeron® processor N3350
1 DDR3L SO-DIMM for up to 8GB of memory
2 USB 2.0 and 4 USB 3.0
1 PCI Express Mini Card slot
ZIO connector
| brand | Axiomtek | ||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||
| Description | CAPA313 is based on an Intel® Pentium® processor N4200 or Intel® Celeron® N3350 (codename: Apollo Lake). This 3.5" embedded board is designed for operational stability in harsh environments supporting a wide operating temperature range from -20°C to +70°C. It also offers wide range DC input of 12V to 24 for various industrial environments. Providing rich I/O connectors, stunning graphical performance and an emphasis on expandability. The CAPA313 has one PCI Expess Mini Card slot for 3G/4G, GPS, Wi-Fi and Bluetooth connection and comes with one RS-232/422/485, one RS-232, two USB 2.0, four USB 3.0, eight-channel digital I/O, audio, LVDS, HDMI, VGA (optional) and dual Gigabit LANs with Intel® i211AT Ethernet controller. It also features one SATA-600 socket and one mSATA interface for storage devices. To ensure reliable operation, the 3.5” embedded SBC supports watchdog timer and hardware monitoring features.
Intel® Pentium® processor N4200/Celeron® processor N3350 1 DDR3L SO-DIMM for up to 8GB of memory 2 USB 2.0 and 4 USB 3.0 1 PCI Express Mini Card slot ZIO connector |
