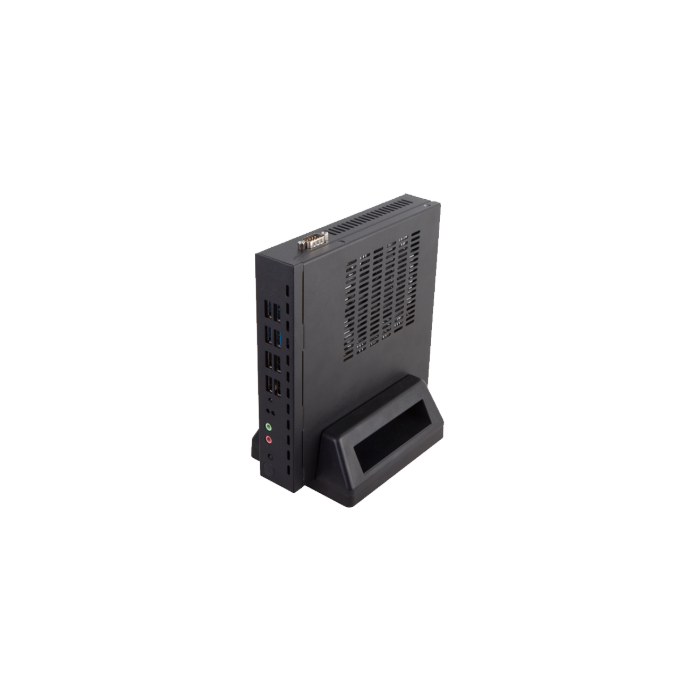

BQ67, Intel 7th Gen Dual Display Media Player

Details

Despite its compact size, the BQ67 is a surprisingly versatile and powerful PC that offers desktop CPU performance. The BQ67 provides the power of Intel Core Skylake-S and Kabylake-S series CPUs. This powerful but compact fat client is ideal for applications such as office computers in government or enterprise roles and kiosks in retail.

More Information

Brand

Giada Technology Inc.

Specifications

	BQ67
Processor	CPU	Intel^®LGA1151 Socket 6th/7th Gen. Processor
BIOS	AMI Source Code
Chipset	H110
Memory	Type	DDR3L
Socket	2 x SO-DIMM
Max Size	32GB
Graphics	GPU	Intel^® HD Graphics 520/620
Graphic Engine	Direct3D 2015, OpenGL 4.5, OpenCL 2.1
HDMI	1 x HDMI1.4b (Max.3840x2160 @30Hz)
HDMI	1 x HDMI2.0 (Max.3840x2160 @60Hz)
Network	Controller	Intel I219LM Gigabit Ethernet
Interface	1 x RJ45
I/O	USB	4 x USB 3.0,6 x USB 2.0
Serial Port	1 x RS232
Audio	1 x AUDIO-OUT, 1 x MIC-IN
M.2	1 x M.2(2242/2280) for SSD
M.2	1 x M.2(2230) for WiFi/BT
Storage	SATA	1 x 2.5\" SATA
JAHC Tech	WatchDog Timer	0~255 Second Time Out Support
Auto Power On	Power Activated Automatically Start
RTC	Set Up Independently Every day, A Week as a Cycle
Operation System	Windows	Windows 7/8.1/10(64-bit)
Linux	Supported
Power	Power Type	DC-IN
Input Voltage	19V/4.74A
Mechanical	Dimensions (W × D × H)	180mm x 177mm x 36mm（7.09\"x 6.97\"x 1.42\"）
Construction	Metal
Mounting(Optional)	VESA Mounting Kit (JZ300)
Color	Black
Environment	Operating Temperature	0℃ ~ 45℃ ( 32 ℉ ~ 113 ℉ ) at 0.7m/s Air Flow
Relative Humidity	95%@40℃ (non-condensing)
Certification	Certification	CE, FCC Class B, CCC

Description

Despite its compact size, the BQ67 is a surprisingly versatile and powerful PC that offers desktop CPU performance. The BQ67 provides the power of Intel Core Skylake-S and Kabylake-S series CPUs. This powerful but compact fat client is ideal for applications such as office computers in government or enterprise roles and kiosks in retail.

Reviews

Write Your Own Review

Downloads

BQ67SPEC.pdf *

* You have to Login or Register to download this file

BQ67, Intel 7th gen Desktop CPU, Dual Display media player
