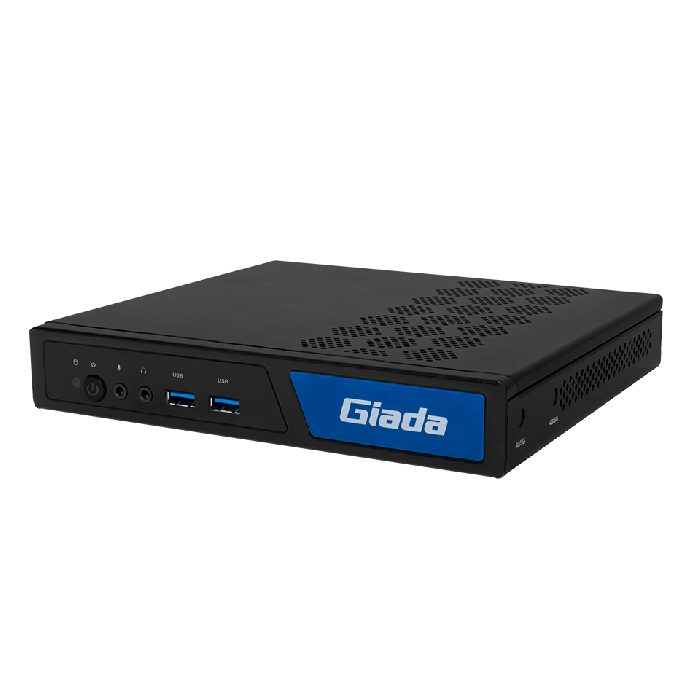

Shop BQ614 High-End Signage Player

Details

The BQ614 adopts Intel® B760 chipset, it can support Intel® 12th/13th/14th generation socket-type processors. It supports dual-channel DDR5 memory and it is flexible to extend the NVMe SSD and 1 x SATAIII storage.

With Intel® UHD Graphics 770, 750 or 730, BQ614 supports 3 displays. Two of the displays are an HDMI 2.0a (4096x2304@60Hz) a DisplayPort 1.4 (7680x4320 @60Hz), or an optional VGA port (2048 x 1536@60Hz). Besides, its USB type-C port provides a DP1.4 signal supporting up to 8K resolution.

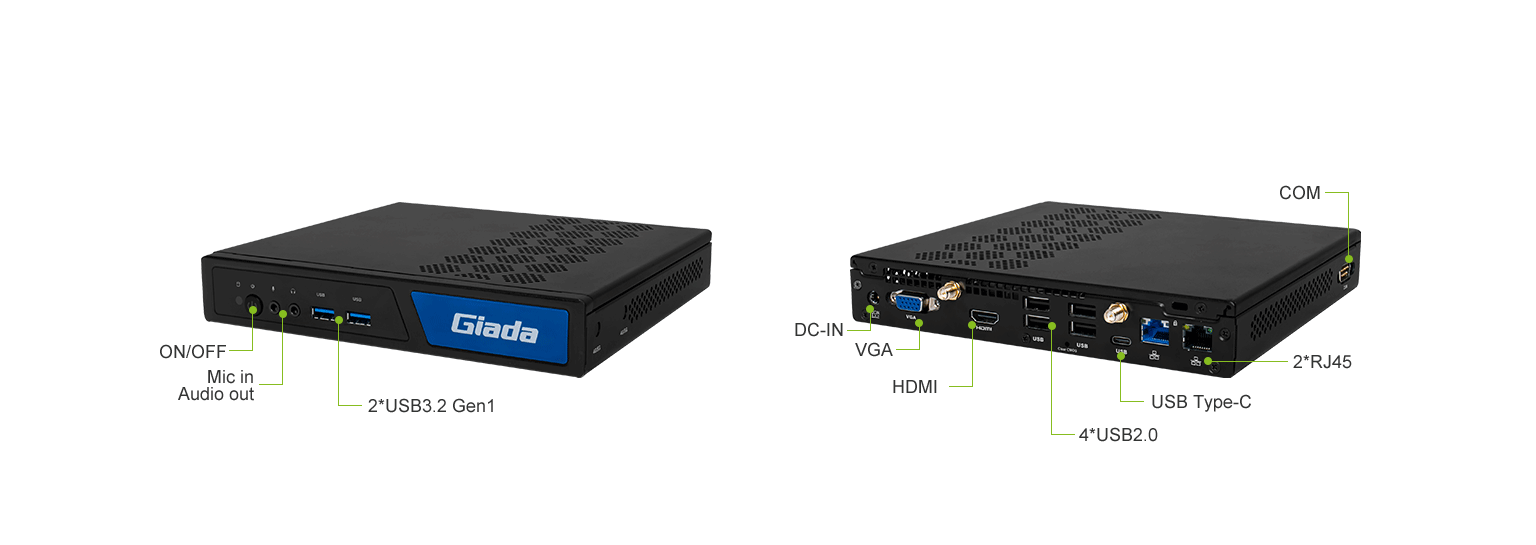

The PC measures only 1.24L, yet supports rich I/O ports, including 6 x USB Type-A and dual LAN ports. With a micro switch, it can detect the removal of the computer cover. Once the chassis is opened, the BIOS will record (won't alarm) and warn you the next time when the system starts up.

More Information

brand

Giada Technology Inc.

Specifications

CPU	CPU	Intel^® LGA1700 Socket 12th/13th/14th Gen. processors
	Frequency	by CPU
	Chipset	B760 / H610
	Processing Units	by CPU
	TDP	≤ 65 W
Memory	Size	Up to 96 GB
Memory	Type	2 x SO-DIMM DDR5-5600 MHz
Storage	Socket 1	1 x M-Key M.2 (2280) PCIe3.0 X4 for SSD
Storage	Socket 2	1 x 2.5” SATAIII (7+15 pin)
Display	GPU	Intel® UHD Graphics 730/770
	Graphic Engine	DirectX 12.0, OpenGL 4.5, OpenCL 3.0,
	Display Interface	1 x HDMI (Max. 4096 x 2160 @60 Hz) 1 x DP1.4 (Max. 7680 x 4320 @60 Hz) Optional: VGA (Max. 2048 x 1536 @60 Hz) colay with DP
Network	Network Controller	1 x Realtek RTL 8111H Gigabit Ethernet 1 x Intel Ethernet Controller I226-V
	Ethernet Interface	1 x 2.5GbE RJ45, 1 x 1GbE RJ45
	Wi-Fi/BT	1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi6, Wi-Fi6E (CNVi), Wi-Fi7 (Only 14th Gen CPU)
	Mobile Network	1 x B-Key M.2 (3042/3052) for 4G/5G, 1 x SIM Slot
I/O interface	USB(B760)	1 x USB Type-C3.2 Gen2 (Supports DP1.4 output) 2 x USB3.2 Gen2, 2 x USB3.2 Gen1, 2 x USB2.0
	USB(H610)	1 x USB Type-C3.2 Gen2 (Supports DP1.4 output) 1 x USB3.2 Gen2, 1 x USB3.2 Gen1, 4 x USB2.0
	Serial Port	1 x RS232
	Audio	1 x MIC-IN, 1 x LINE-OUT
	Button	1 x Power on, 1 x CLR-CMOS
	Antenna	2 x Connector for Wi-Fi/BT
System	TPM	Optional: TPM2.0
	Watchdog Timer	Yes
	Auto Power On	Yes
	RTC	Set up independently every day, a week as a cycle
	Power Requirement	DC-IN, 19 V/6.32 A
	Dimensions	200 mm x 185 mm x 35.5 mm (7.87” x 7.28” x 1.40”)
	Construction	Metal, Black
	Operating System	Windows 11 (64bit) /Linux Ubuntu (64bit)
	Operating Temperature	0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
	Humidity	95% @ 45°C (non-condensing)
	Certifications	CE, FCC Class B, UKCA

Description

The BQ614 adopts Intel® B760 chipset, it can support Intel® 12th/13th/14th generation socket-type processors. It supports dual-channel DDR5 memory and it is flexible to extend the NVMe SSD and 1 x SATAIII storage.

With Intel® UHD Graphics 770, 750 or 730, BQ614 supports 3 displays. Two of the displays are an HDMI 2.0a (4096x2304@60Hz) a DisplayPort 1.4 (7680x4320 @60Hz), or an optional VGA port (2048 x 1536@60Hz). Besides, its USB type-C port provides a DP1.4 signal supporting up to 8K resolution.

The PC measures only 1.24L, yet supports rich I/O ports, including 6 x USB Type-A and dual LAN ports. With a micro switch, it can detect the removal of the computer cover. Once the chassis is opened, the BIOS will record (won't alarm) and warn you the next time when the system starts up.
