Aplex AUHMI-916CP(H) 15.6” Modular 11th Gen Intel Fanless Panel PC Fanless IP66 TPM2.0
Key Features:

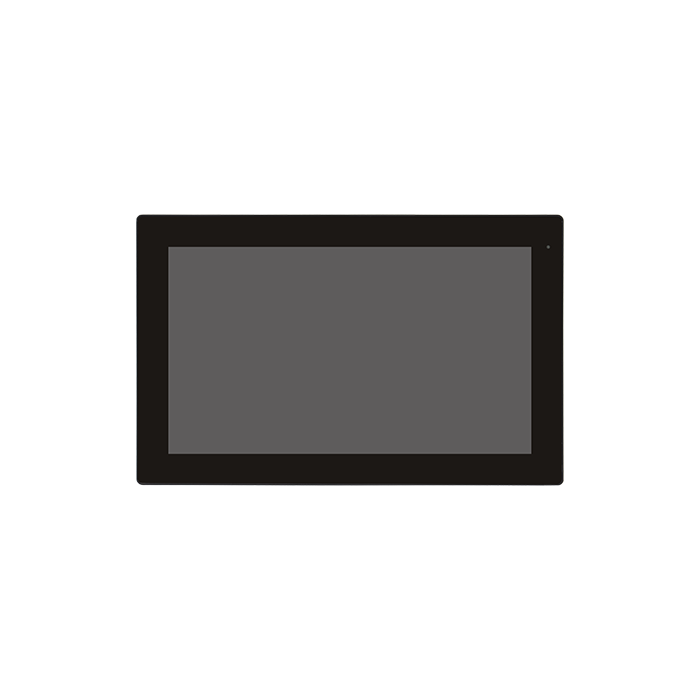

15.6” Industrial Compact Size Panel PC
11th Gen. Intel Core i3/i5 Processor
2 x 260-pin SO-DIMM DDR4 slot, up to 64GB 3200MHz
Flat Front Panel Touch Screen with IP66 front bezel
Fanless Design
DC 9~36V Wide-Ranging Power Input
Support Expansion via Full-size Mini-PCIe and M.2 slots
Support TPM2.0 hardware security
High Brightness 1,000 nits for option
AUHMI-916CP 15.6" HD/FHD fanless HMI barebone with Intel Intel 11th Gen. Core i3-1115G4E/ i5-1145G7E, 2 x DDR4 slot, 1 x M.2 2280 SATA slot, 1 x M.2 E key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
AUHMI-916CPH 15.6" HD/FHD high brightness fanless HMI barebone with Intel Intel 11th Gen. Core i3- 1115G4E/ i5-1145G7E, 2 x DDR4 slot, 1 x M.2 2280 SATA slot, 1 x M.2 E key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
The 15.6” Industrial Compact Size Panel PC is powered by an 11th Gen. Intel Core i3/i5 Processor, providing robust performance. It features two 260-pin SO-DIMM DDR4 slots, supporting memory expansion of up to 64GB at 3200MHz for enhanced multitasking capabilities. The panel PC boasts a flat front panel with an IP66-rated front bezel, ensuring durability and protection against dust and water.
With a fanless design, the device operates quietly and efficiently, reducing maintenance needs. It supports a wide-ranging DC power input from 9 to 36V, allowing flexible power options. Additionally, the panel PC offers expansion possibilities through full-size Mini-PCIe and M.2 slots, enabling the integration of additional functionalities.
To ensure data security, the device supports TPM2.0 hardware security features. For applications requiring high brightness displays, there is an option available for a 1,000 nits high brightness screen, ensuring optimal visibility in various environments.
Key Features:
15.6” Industrial Compact Size Panel PC
11th Gen. Intel Core i3/i5 Processor
2 x 260-pin SO-DIMM DDR4 slot, up to 64GB 3200MHz
Flat Front Panel Touch Screen with IP66 front bezel
Fanless Design
DC 9~36V Wide-Ranging Power Input
Support Expansion via Full-size Mini-PCIe and M.2 slots
* 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper(COM1)
* 1 x RS-232(Tx, Rx)/422/485(COM2) by Y Cable
Audio
1 x Audio Line Out
DP
1 x DP / HDMI
LAN
2 x GbE LAN RJ-45
Power
1 x 3-pin Terminal Block Connector1 x 2-pin Power Switch Connector
4G LTE
Wi-Fi + Bluetooth
4 x USB 2.0 type A (TB-528U4)
4 x USB 2.0 type A + 1 x Mini-PCIe + 1 SIM slot (TB-528U4ME1)
1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2)
1 x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1)
2 x COM (RS-232) (TB-528C2)
Option
2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1)
2 x COM (RS-422/485, isolated) (TB-528C2I)
2 x CAN (TB-528CAN2)
1 x LAN + 2 x USB 2.0 (TB-528E1U2)
1 x LAN(45W isolated PoE PD) + 2 x USB 2.0 type A (TB528E1U2UPOE)*
Backup Battery
(TB-528 Series or backup battery only be inserted in either one)
Either high brightness panel or backup battery can be installed in HMI
Storage Space
Storage
1 x M.2 M-Key 2280 (Support PCIe/SATA3)
Expansion
1 x Mini-PCIe slot (full size)
Onboard Expansion
1 x M.2 E key for Wifi/BT Module
1 x Nano SIM slot
Standard
Optional High Brightness
Display Type
15.6" TFT-LCD
15.6" TFT-LCD
Max. Resolution
default
optional
default
optional
1366 x 768
1920 x 1080
1366 x 768
1920 x 1080
Max. Color
16.7M
16.7M
16.7M
16.7M
Luminance (cd/m2)
400
500
1000
1000
View Angle
170(H)/160(V)
178(H)/178(V)
160(H)/160(V)
170(H)/170(V)
Contrast
500:1
1000:1
500:1
1000:1
Backlight Lifetime
50,000 hrs
50,000 hrs
50,000 hrs
50,000 hrs
Touch Screen
Type
Projected Capacitive Touch
Interface
USB
Light Transmission(%)
90%
Power
Power Input
DC 9~36V
Power Consumption
70W (HELIO-916CP with i3)
Mechanical
Construction
Aluminum Die-casting chassis
Mounting
Panel Mount, VESA 100 x 100
Dimensions (WxHxD)
405 x 256 x 59 mm
IP Rating
IP66 Compliant Front Bezel
Net Weight
3.7 kg
Environmental
Operating Temperature
0~50 ̊C / -20~60 ̊C (option)
Storage Temperature
-30~70 ̊C
Humidity
10 to 90%@ 40 ̊C, non-condensing
Certificate
CE/FCC, Class A
Operating System Support
Windows 10 IoT, Windows 11
AUHMI-916CP
15.6" HD/FHD fanless HMI barebone with Intel Intel 11th Gen. Core i3-1115G4E/ i5-1145G7E, 2 x DDR4 slot, 1 x M.2 2280 SATA slot, 1 x M.2 E key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
AUHMI-916CPH
15.6" HD/FHD high brightness fanless HMI barebone with Intel Intel 11th Gen. Core i3- 1115G4E/ i5-1145G7E, 2 x DDR4 slot, 1 x M.2 2280 SATA slot, 1 x M.2 E key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
*PoE limitation: CPU turbo off, rear I/O no loading, 70% LED backlight, PSE cable length < 50m
