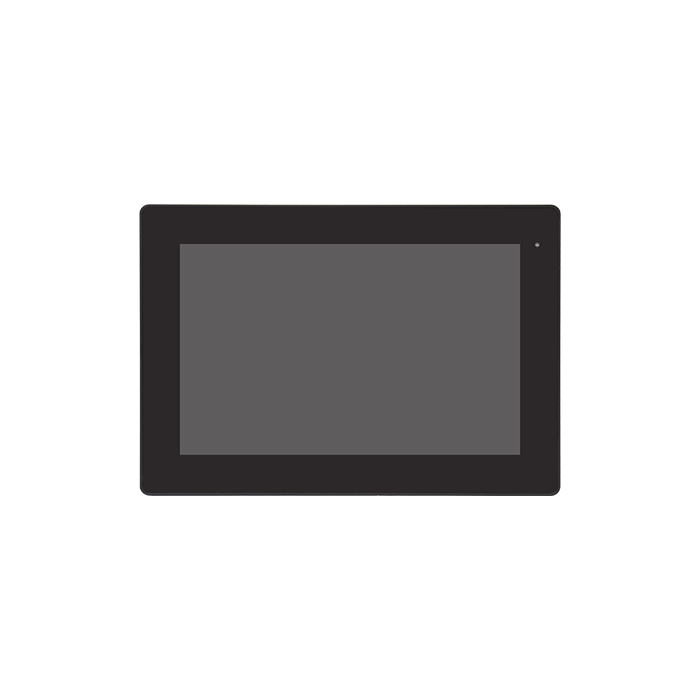

AUHMI-910CP(H) 10.1” 11th Gen Fanless Panel PC

Details

The 10.1" Industrial Compact Size Panel PC is powered by an 11th Gen. Intel Core i3/i5 Processor, providing robust performance. It features two 260-pin SO-DIMM DDR4 slots, supporting memory expansion of up to 64GB at 3200MHz for enhanced multitasking capabilities. The panel PC boasts a flat front panel with an IP66-rated front bezel, ensuring durability and protection against dust and water.

With a fanless design, the device operates quietly and efficiently, reducing maintenance needs. It supports a wide-ranging DC power input from 9 to 36V, allowing flexible power options. Additionally, the panel PC offers expansion possibilities through full-size Mini-PCIe and M.2 slots, enabling the integration of additional functionalities.

To ensure data security, the device supports TPM2.0 hardware security features. For applications requiring high brightness displays, there is an option available for a 1,000 nits high brightness screen, ensuring optimal visibility in various environments.

Key Features:

10.1” Industrial Compact Size Panel PC
11th Gen. Intel Core i3/i5 Processor
2 x 260-pin SO-DIMM DDR4 slot, up to 64GB 3200MHz
Flat Front Panel Touch Screen with IP66 front bezel
Fanless Design
DC 9~36V Wide-Ranging Power Input
Support Expansion via Full-size Mini-PCIe and M.2 slots
Support TPM2.0 hardware security
High Brightness 1,000 nits for option

More Information

brand

Aplex Technology Inc.

Specifications

System
		11th Gen. Intel Core i3/i5 Processors
CPU		Core i3-1115G4E (Dual Core, 6 MB cache, 2.20 GHz)
		Core i5-1145G7E (Quad Core, 8 MB cache, 1.50 GHz)
System Chipset		SoC
Memory		2 x 260-pin SO-DIMM up to 64GB DDR4 3200MHz
TPM		TPM 2.0
I/O Port
USB		4 x USB 3.0 type A
		1 x DB-9 connector, including:
Serial		* 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper(COM1)
		* 1 x RS-232(Tx, Rx)/422/485(COM2) by Y Cable
Audio		1 x Audio Line Out
DP		1 x DP / HDMI
LAN		2 x GbE LAN RJ-45
Power		1 x 3-pin Terminal Block Connector1 x 2-pin Power Switch Connector
		4G LTE
		Wi-Fi + Bluetooth
		4 x USB 2.0 type A (TB-528U4)
		4 x USB 2.0 type A + 1 x Mini-PCIe + 1 SIM slot (TB-528U4ME1)
		1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2)
		1 x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1)
		2 x COM (RS-232) (TB-528C2)
Option		2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1)
		2 x COM (RS-422/485, isolated) (TB-528C2I)
		2 x CAN (TB-528CAN2)
		1 x LAN + 2 x USB 2.0 (TB-528E1U2)
		1 x LAN(45W isolated PoE PD) + 2 x USB 2.0 type A (TB528E1U2UPOE)*
		Backup Battery
		(TB-528 Series or backup battery only be inserted in either one)
		Either high brightness panel or backup battery can be installed in HMI
Storage Space
Storage		1 x M.2 M-Key 2280 (Support PCIe/SATA3)
Expansion
		1 x Mini-PCIe slot (full size)
Onboard Expansion		1 x M.2 E key for Wifi/BT Module
		1 x Nano SIM slot
Display	Standard			Optional High Brightness
Display Type	10.1" TFT-LCD			10.1" TFT-LCD
Max. Resolution	1280 x 800			1280 x 800
Max. Color	16.7M			16.2M
Luminance (cd/m2)	350			1000
View Angle	170(H)/170(V)			170(H)/170(V)
Contrast	800:1			1300:1
Backlight Lifetime	30,000 hrs			50,000 hrs
Touch Screen
Type			Projected Capacitive Touch
Interface			USB
Light Transmission(%)			90%
Power
Power Input			DC 9~36V
Power Consumption			48W (HELIO-910CP with i3)
Mechanical
Construction			Aluminum Die-casting chassis
Mounting			Panel Mount, VESA 100 x 100
Dimensions (WxHxD)			269 x 189 x 51 mm
IP Rating			IP66 Compliant Front Bezel
Net Weight			1.8 kg
Environmental
Operating Temperature			0~50 ̊C / -20~60 ̊C (option)
Storage Temperature			-30~70 ̊C
Humidity			10 to 90%@ 40 ̊C, non-condensing
Certificate			CE/FCC, Class A
Operating System Support			Windows 10 IoT, Windows 11
AUHMI-910CP			10.1" WXGA fanless HMI barebone with Intel Intel 11th Gen. Core i3-1115G4E/ i5-1145G7E, 2 x DDR4 slot, 1 x M.2 2280 SATA slot, 1 x M.2 E key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
AUHMI-910CPH			10.1" WXGA high brightness fanless HMI barebone with Intel Intel 11th Gen. Core i3- 1115G4E/ i5-1145G7E, 2 x DDR4 slot, 1 x M.2 2280 SATA slot, 1 x M.2 E key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
*PoE limitation: CPU turbo off, rear I/O no loading, 70% LED backlight, PSE cable length < 50m

Description

The 10.1" Industrial Compact Size Panel PC is powered by an 11th Gen. Intel Core i3/i5 Processor, providing robust performance. It features two 260-pin SO-DIMM DDR4 slots, supporting memory expansion of up to 64GB at 3200MHz for enhanced multitasking capabilities. The panel PC boasts a flat front panel with an IP66-rated front bezel, ensuring durability and protection against dust and water.

With a fanless design, the device operates quietly and efficiently, reducing maintenance needs. It supports a wide-ranging DC power input from 9 to 36V, allowing flexible power options. Additionally, the panel PC offers expansion possibilities through full-size Mini-PCIe and M.2 slots, enabling the integration of additional functionalities.

To ensure data security, the device supports TPM2.0 hardware security features. For applications requiring high brightness displays, there is an option available for a 1,000 nits high brightness screen, ensuring optimal visibility in various environments.

Key Features:

10.1” Industrial Compact Size Panel PC
11th Gen. Intel Core i3/i5 Processor
2 x 260-pin SO-DIMM DDR4 slot, up to 64GB 3200MHz
Flat Front Panel Touch Screen with IP66 front bezel
Fanless Design
DC 9~36V Wide-Ranging Power Input
Support Expansion via Full-size Mini-PCIe and M.2 slots
Support TPM2.0 hardware security
High Brightness 1,000 nits for option
