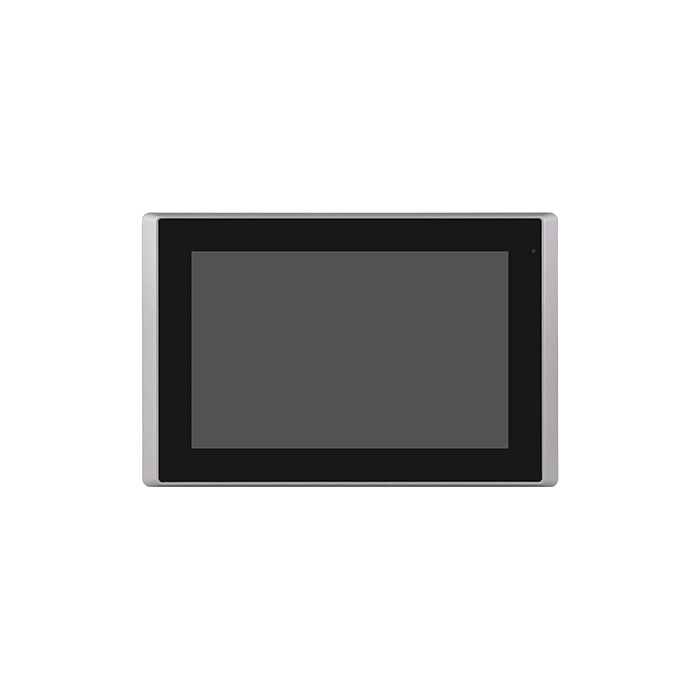

ARCDIS-110A 10.1” Front IP66 Display

I/O Port

• 1 x VGA
• 1 x DVI-D (share with HDMI)
• 1 x DP
• 1 x HDMI (share with DVI-D)
• OSD Control Membrane OSD: at the rear side
• Power: 1 x 3-pin terminal block for DC 9~36V power input
• LED Light: 1 x system power LED light
• Speaker" 1 x 2W speaker for option
• 1 x USB type B for touch control
• Optional I/O:

  • 1 x Line-in by phone jack
  • 1 x RS-232 DB-9 for touch control

Touch Screen

• Type
  • Resistive Touch (for AR Model)
  • Projected Capacitive Touch (for AP Model)
  • Glass (for AG model)
• Interface
  • USB default (Resistive / Projected Capacitive Touch)
  • RS-232 Option (Resistive Touch)
• Light Transmission(%)
  • Resistive Touch: over 80%
  • Projected Capacitive Touch: over 90%

Environmental

• 0~50°C / -20~60°C for option
