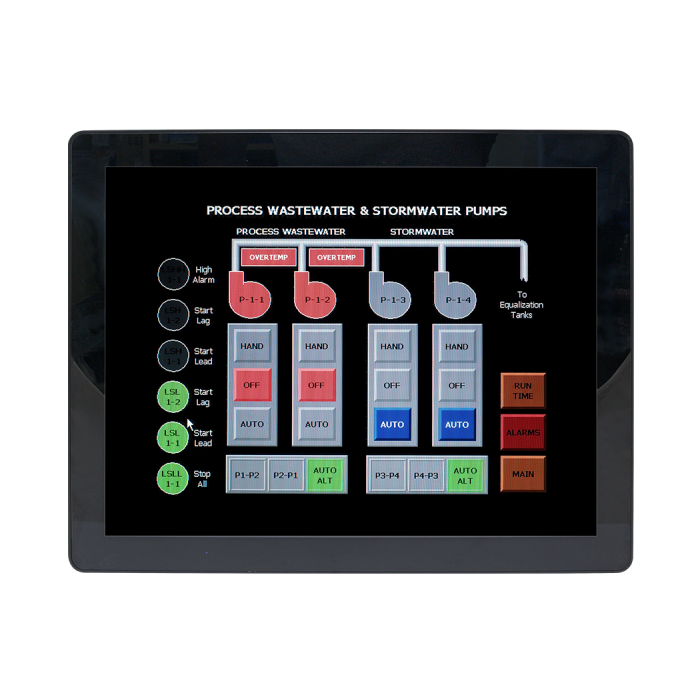

Compact and Durable Design The ARC-1538-C1 is built for industrial environments, featuring a robust and compact design that ensures reliable performance even in harsh conditions. Its slim profile makes it ideal for space-constrained installations.
Efficient Performance Powered by Intel® Celeron® or Pentium® processors, this panel PC delivers efficient and smooth performance for a variety of industrial applications. It is suitable for tasks that require high stability and low power consumption.
Versatile Connectivity With multiple I/O ports, including USB, LAN, and COM, the ARC-1538-C1 supports easy integration with other equipment and devices. It ensures seamless communication across different systems.
Flexible Mounting Options The panel PC offers multiple mounting options, including VESA, panel, and wall mounts, providing flexibility for various setups and installations.
Ideal for use in industrial automation, control systems, and HMI applications, the ARC-1538-C1 provides a reliable and adaptable solution for modern industrial needs.
11th Generation Intel® Core™ i3/i5/i7 Processors(Non-embedded CPU) Intel® Core™ i7-1165G7 Processor, 12M Cache, up to 2.80 GHz Intel® Core™ i5-1135G7 Processor, 8M Cache, up to 2.40 GHz Intel® Core™ i3-1115G4 Processor, 6M Cache, up to 3.00 GHz
System Memory
2 x 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB max
I/O Chipset
NuvoTon_NCT6126D
Watchdog Timer
H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step
H/W Status Monitor
Monitoring CPU & system temperature and voltage
TPM
Onboard NuvoTon NPCT754AADYX support TPM 2.0
SBC
EMX-TGLC-B1
CPU Cooler (Type)
Fanless heatsink
Other
AUX-089 (SIM card expansion card)
Expansion
Expansion
1 x M.2 Key B+M 3042/3052/2242/2260/2280 support 1xPCIEx1/SATA/USB3.0/USB2.0 with 1 x SIM card slot, support WWAN+GNSS 1 x M.2 Key E 2230 support WiFi module and CNVi (1 x PCI-e x1 & USB 2.0 signal)
Storage
Storage
M.2 type B+M 3042/3052/2242/2260/2280 SSD (SATA)
Solid State Drive
1 x 2.5” Drive Bay design
Audio
Audio Codec
Realtek ALC897 co-lay ALC888S (Default: ALC897)
Speaker Output
2 x 5W
Ethernet
LAN Chipset
1 x Intel® I219LM Gigabit Ethernet PHY (LAN1) 1 x Intel® I226LM 2.5 Gigabit Ethernet (LAN2)
C170P060040R US Power Cord SM001/3P+SM006/3P 1.83M
C170P060050R EU Power Cord SH005/3P+SH006/3P 1.83M
C170P060060R JP Power Cord SH001/3P+SH006/3P 1.83M
C170P060070R UK Power Cord YP61A/3P+YC12/3P 1.83M
C170P060080R AU Power Cord SH051/3P+SH006/3P 1.83M
Description
Compact and Durable Design The ARC-1538-C1 is built for industrial environments, featuring a robust and compact design that ensures reliable performance even in harsh conditions. Its slim profile makes it ideal for space-constrained installations.
Efficient Performance Powered by Intel® Celeron® or Pentium® processors, this panel PC delivers efficient and smooth performance for a variety of industrial applications. It is suitable for tasks that require high stability and low power consumption.
Versatile Connectivity With multiple I/O ports, including USB, LAN, and COM, the ARC-1538-C1 supports easy integration with other equipment and devices. It ensures seamless communication across different systems.
Flexible Mounting Options The panel PC offers multiple mounting options, including VESA, panel, and wall mounts, providing flexibility for various setups and installations.
Ideal for use in industrial automation, control systems, and HMI applications, the ARC-1538-C1 provides a reliable and adaptable solution for modern industrial needs.
