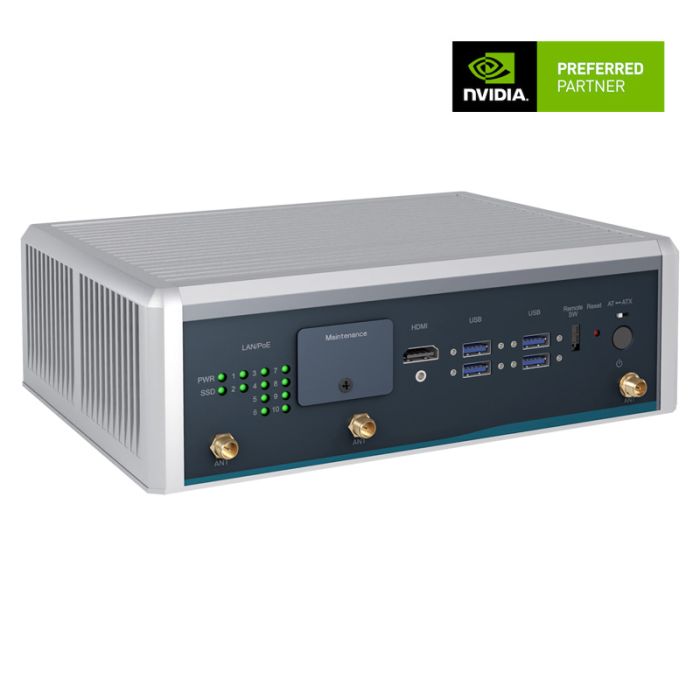

AIE900A-AO Fanless Edge AI System w/ NVIDIA Jetson AGX Orin

Be the first to review this product

A$0.00

In stock

SKU

AIE900A-AO-2L8P

Fanless Edge AI System with NVIDIA Jetson AGX Orin, 2 2.5GbE, 8 PoE, and 2 COM/CAN for 5G and Robotics Applications

Key Features:

NVIDIA Jetson AGX Orin with 1792-core NVIDIA Ampere GPU
1 M.2 Key B slot for 5G/LTE, 1 M.2 Key E slot for Wi-Fi 6(E)
24 VDC with ignition power control
Supports eight PoE for IP cameras and LiDAR connectivity
-30°C to +50°C operating temperature range
Supports device management and optional OTA deployment powered by Allxon

Details

The AIE900A-AO from Axiomtek is built on the NVIDIA Jetson AGX OrinTM platform, which includes an Arm Cortex-A78AE CPU with up to 200 TOPS of AI performance and an advanced NVIDIA Ampere architecture GPU with 56 Tensor Cores. It can provide server-class performance for edge AI applications.

Key Features:

NVIDIA Jetson AGX Orin with 1792-core NVIDIA Ampere GPU
1 M.2 Key B slot for 5G/LTE, 1 M.2 Key E slot for Wi-Fi 6(E)
24 VDC with ignition power control
Supports eight PoE for IP cameras and LiDAR connectivity
-30°C to +50°C operating temperature range
Supports device management and optional OTA deployment powered by Allxon

More Information

brand

Axiomtek

Specifications

AI Accelerator	NVIDIA® Jetson AGX Orin™
CPU	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
GPU	1792-core NVIDIA Ampere™ GPU with 56 Tensor Cores
Chipset	SoC integrated
System Memory	32GB 256-bit LPDDR5 204.8GB/s
COM	2 x DB9 for RS-232/422/485/CAN (selected by jumper setting)
USB	4 x USB 3.2 Gen2 2 x USB 2.0
Ethernet	2 x 10/100/1000/2500 Mbps Ethernet (Intel® i226) 8 x 10/100 Mbps PoE (up to 60W)
Display	1 x Lockable HDMI 2.0 with 4K2K supported
Digital I/O	1 x 8-CH DI/DO
Audio	N/A
Storage	Onboard 64GB eMMC (via Jetson AGX Orin™) 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot 1 x Micro SD slot
Expansion	1 x MIPI CSI-2 connector 1 x M.2 Key E 2230 slot for Wi-Fi 6(E) 1 x M.2 Key B 3052/3050/3042 slot for 5G/LTE 1 x Nano SIM slot
Others	1 x Remote switch 1 x Reset button 1 x Power button 1 x Micro USB 1 x Recovery switch (for image update) 5 x SMA-type antenna opening
Power Supply	24 VDC with ignition power control
Watchdog Timer	Built-in AGX Orin
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-30°C to +50°C (-22°F to +122°F)
Relative Humidity	10% - 95%, non-condensing
Vibration	3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)	239 x 185.3 x 79.4mm (9.41" x 7.3" x 3.13")
Weight (net/gross)	2.8kg (6.17lb)/3.45kg (7.61lb)
Certifications	CE, FCC Class A
EOS Support	Linux Ubuntu 20.04
Mounting	Wall mount kit DIN-rail kit VESA mount kit

Description

Key Features:

NVIDIA Jetson AGX Orin with 1792-core NVIDIA Ampere GPU
1 M.2 Key B slot for 5G/LTE, 1 M.2 Key E slot for Wi-Fi 6(E)
24 VDC with ignition power control
Supports eight PoE for IP cameras and LiDAR connectivity
-30°C to +50°C operating temperature range
Supports device management and optional OTA deployment powered by Allxon
