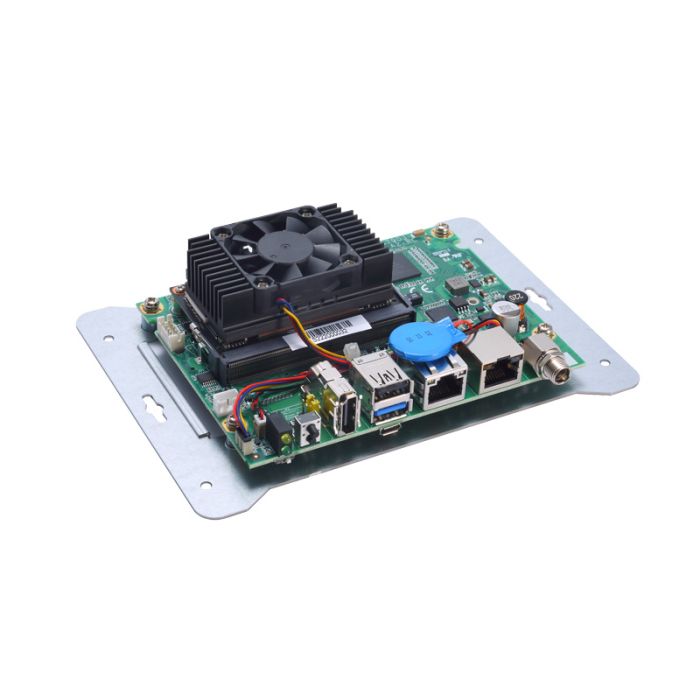

The AIE110 powered by a NVIDIA® Carmel™ 6-core ARM cpu in junction with a 384-core NVIDIA® Volta™ GPU to enable a system capable of AI development. Included with 1 GbE LAN & POE connections to enable the use of cameras and 24/7 secure monitoring and control through remote software. Includes 8GB of LPDDR4x memory onboard and has additional expansion slots for M.2 NVME SSD's alongside Mini PCI Express for use with LTE/Wi-Fi chips.
1 x 10/100/1000 Mbps Ethernet (via Jetson Xavier™ NX)
1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W)
1 x USB 3.2 Gen2, 1 x USB 2.0
1 x DIO (pin header)
1 x Micro USB
1 x Recovery switch
1 x Reset button
1 x Power button
1 x 12 VDC power input connector
Watchdog Timer
Built-in Xavier NX
Storage
Onboard 16GB eMMC (via Jetson Xavier™ NX)
1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
1 x Micro SD slot
*The bootable device supported by eMMC only
Expansion Interface
1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
1 x SIM slot
System Indicator
1 x Green LED for system power-on
1 x Yellow LED for M.2 storage
Power Supply
12 VDC screw type
Operating Temperature
-10°C to +60°C (14°F to +140°F)
Humidity
10% - 95%, non-condensing
Vibration Endurance
3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
Dimensions
165 mm (6.49\") (W) x 117 mm (4.60\") (D) x 37.7 mm (1.48\") (H)
Weight (net/gross)
0.3 kg (0.66 lb)/ 0.9 kg (1.98 lb)
Certifications
CE, FCC Class A
OS Support
Linux Ubuntu 18.04 or later
Description
The AIE110 powered by a NVIDIA® Carmel™ 6-core ARM cpu in junction with a 384-core NVIDIA® Volta™ GPU to enable a system capable of AI development. Included with 1 GbE LAN & POE connections to enable the use of cameras and 24/7 secure monitoring and control through remote software. Includes 8GB of LPDDR4x memory onboard and has additional expansion slots for M.2 NVME SSD's alongside Mini PCI Express for use with LTE/Wi-Fi chips.
