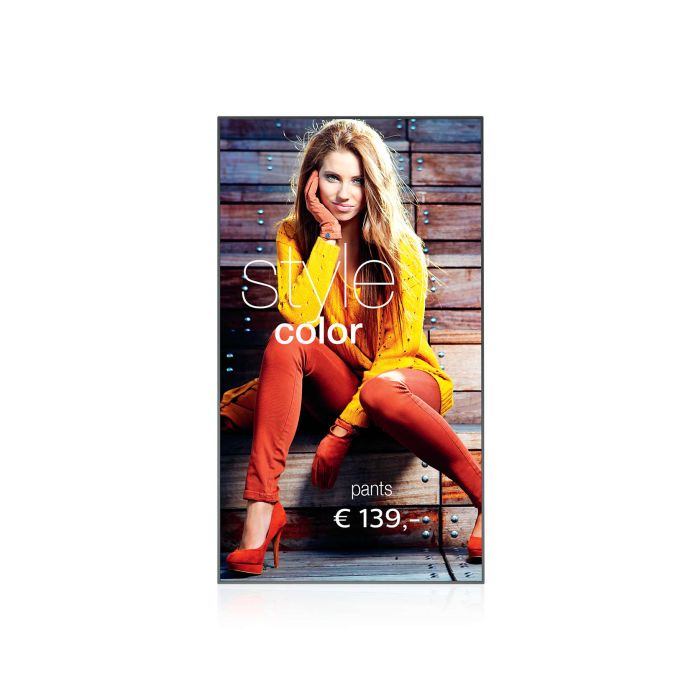

75BDL3003H - 75" UHD High Brightness Display

Picture/Display

Diagonal screen size (inch)

74.5  inch

Diagonal screen size (metric)

189.3  cm

Panel technology

IPS

Optimum resolution

3840 x 2160 @ 60Hz

Brightness

3000  cd/m²

Contrast ratio (typical)

1200:1

Dynamic contrast ratio

500,000:1

Aspect ratio

16:9

Response time (typical)

8  ms

Pixel pitch

0.429 x 0.429 mm

Display colors

1.07 Billion

Viewing angle (horizontal)

89  degree

Viewing angle (vertical)

89  degree

Picture enhancement

• 3/2 - 2/2 motion pull down
• 3D Combfilter
• 3D MA deinterlacing
• Dynamic contrast enhancement
• Motion compens. deinterlacing
• Progressive scan

Panel resolution

3840 x 2160

Connectivity

Video input

• VGA (Analog D-Sub)
• DisplayPort (1.2)
• DVI-D
• Component (RCA)
• Composite (RCA)
• HDMI (x2)

Video output

• DisplayPort
• DVI-I
• VGA (Analog D-Sub)

Audio input

• 3.5 mm jack
• Audio Left/Right (RCA)

Audio output

• 3.5mm jack
• External speaker connector

External control

• RS232C (in/out) 2.5 mm jack
• RJ45
• IR (in/out) 3.5 mm jack

Other connections

• AC-out
• OPS
• USB

Dimensions

Bezel width

15.3 mm

Set Width

1681.2  mm

Set Height

955.6  mm

Set Depth

142.4  mm

Set Width (inch)

66.19  inch

Set Height (inch)

37.62  inch

Set Depth (inch)

5.61  inch

VESA Mount

600 x 400 mm, M8

Product weight

54.1  kg

Product weight (lb)

119.27  lb

Smart insert height

300  mm

Smart insert width

136  mm

Convenience

Placement

• Landscape (24/7)
• Portrait (24/7)

Network controllable

• RS232
• HDMI (One Wire)
• LAN (RJ45)

Signal Loop Through

• RS232
• DisplayPort
• IR Loopthrough

Energy saving functions

Smart Power

Remote control signal

Lockable

Keyboard control

• Hidden
• Lockable

Ease of installation

Smart Insert

Other convenience

Carrying handles

Screen saving functions

Pixel Shift, Low Brightness

Picture in picture

PIP

Picture performance

Advanced color control

Power

Mains power

100 ~ 240 VAC, 50 ~ 60 Hz

Consumption (Typical)

200  W

Standby power consumption

<0.5W

Sound

Built-in speakers

2 x 10W RMS

Operating conditions

Temperature range (operation)

5 ~ 40  °C

Temperature range (storage)

-20 ~ 60  °C

Relative humidity

20 ~ 80  %

MTBF

50,000  hour(s)

Altitude

0 ~ 3000 m
