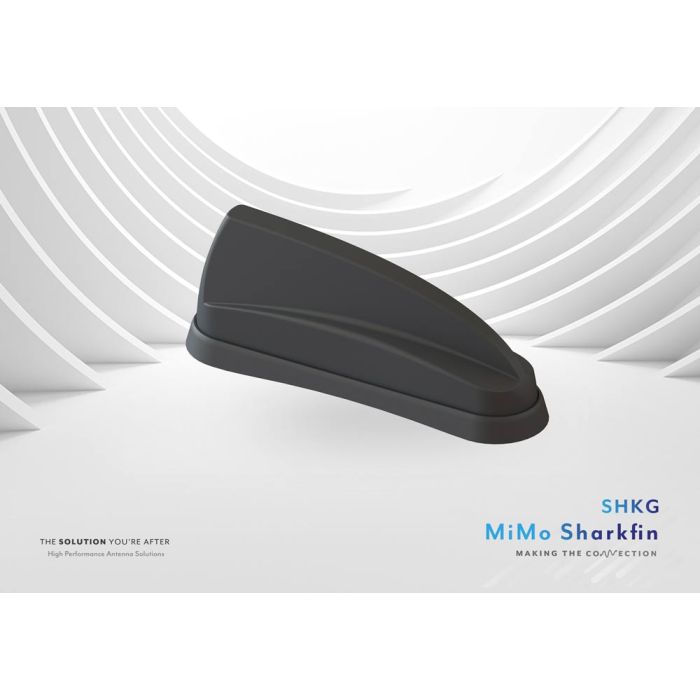

6 in 1 4G/5G Sharkfin MiMo Antenna

Electrical Data
Frequency Range (MHz)
Element 1 1562-1612
Elements 2 & 3 2x 617-960, 1710-6000
Elements 4, 5 6 & 7 4 x 2.4/5.0/7.1GHz 3 x 2.4/5.0/7.1GHz 2 x 2.4/5.0/7.1GHz -
Peak gain: Isotropic*
Elements 2 & 3
5dBi (617-960MHz)
8dBi (1710-3800MHz)
9dBi (4900-6000MHz)
Elements 4, 5, 6 & 7
5dBi (2396-2485MHz) 5dBi (2396-2485MHz) 5dBi (2396-2485MHz) -
11dBi (4900-7200MHz) 11dBi (4900-7200MHz) 11dBi (4900-7200MHz) -
Isolation**
4G/5G >12dB
WiFi > 15dB > 15dB > 15dB -
Typical Efficiency* w/o Cable
Loss
Elements 2 & 3 > 40% (617-698Mz) >60% (698-960/1710-6000MHz)
Correlation Co-efficient Elements 2 & 3 <0.2
Polarisation Vertical
Pattern Omni-directional
Impedance 50Ω
Max Input Power (W) 10
GPS/GNSS Data
Frequency Range (MHz) 1562-1612
VSWR <2:1
Gain: LNA 26dB
Polarisation Right Hand Circular
Out of Band Rejection >40dB (+/- 100MHz f) | Notch Filter @787MHz - 23dB
Operating Voltage 3-5V DC (fed via coax)
Current <20mA
Mechanical Data
Dimensions (mm) - Installed
Total Height 90 (3.54”)
Length 243 (9.56”)
Width 63 (2.48”)
Operating Temp (°C) -40° / +80°C (-40° / 176°F)
Material ASA,Silicone Rubber, Aluminium Alloy
Colour Black or White (SHKGW part numbers)
Weight (g)
Ingress Protection IP66
Mounting Info
Fixing Panel Mount
Hole Size (mm) 19 (3/4”)
Cable Data
Cable Type - All Feeds FR RG174 (UN ECE R 118 Compliant)
Dimensions (mm)
Diameter 2.8 (0.11”)
Length 300 mm (12”)
GPS/GNSS FME (f)
4G/5G 2 x SMA plug
WiFi 4x SMA (f) 3x SMA (f) 2x SMA (f)
