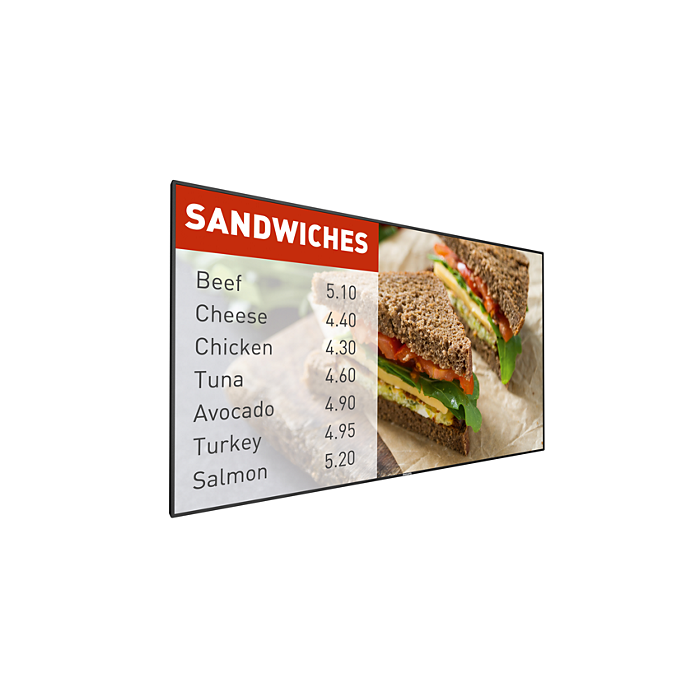

42BDL5057P 42" 24/7 Android Display

Diagonal screen size (inch)

42  inch

Diagonal screen size (metric)

106.7  cm

Panel resolution

1920x1080p

Optimum resolution

1920 x 1080 @ 60Hz

Brightness

700  cd/m²

Contrast ratio (typical)

1300:1

Dynamic contrast ratio

500,000:1

Aspect ratio

16:9

Response time (typical)

8  ms

Pixel pitch

0.4833 x 0.4833 mm

Display colors

1.07 billion

Viewing angle (horizontal)

178  degree

Viewing angle (vertical)

178  degree

Operating system

Android 5.1.1

Connectivity

Video input

• Display Port1.2x1
• DVI-I x 1
• HDMI 1.4x2
• USB 2.0 (Type A) x2
• USB 2.0 (Type B )x1

Video output

• DVI-I x1
• DisplayPort1.2x1

Audio input

3.5 mm jack

Audio output

3.5mm jack

Other connections

• OPS
• Micro USB(type B)x1
• micro SD x1

External control

• RJ45
• RS232C (in/out) 2.5 mm jack
• IR (in/out) 3.5 mm jack

Supported Display Resolution

Computer formats

• 1920 x 1080, 60Hz
• 1360 x 768, 60Hz
• 1280 x 800, 60Hz
• 1280 x 768, 60Hz
• 1024 x 768, 60, 75Hz
• 1280 x 1024, 60Hz
• 1600 x 1200, 60Hz
• 640 x 480, 60, 72, 75Hz
• 720 x 400, 70Hz
• 800 x 600, 60, 75Hz

Video formats

• 1080p, 50, 60Hz
• 720p, 50, 60Hz
• 576p, 50Hz
• 480p, 60Hz
• 1080i, 25, 30Hz
• 480I, 30Hz
• 576i, 25Hz

Dimensions

Set Width

946.9  mm

Set Height

541.0  mm

Set Depth

56.8(@Wall mount), 71.1(@Handle)  mm

Set Depth (inch)

2.80  inch

Set Width (inch)

37.28  inch

Set Height (inch)

21.30  inch

Bezel width

6.5mm

Product weight (lb)

34.17  lb

Product weight

15.5  kg

VESA Mount

200 x 200 mm, M6

Convenience

Placement

• Landscape
• Portrait

Tiled Matrix

Up to 15 x 15

Keyboard control

• Hidden
• Lockable

Signal Loop Through

• DVI
• VGA
• RS232
• IR Loopthrough
• DisplayPort

Network controllable

• RJ45
• RS232
• HDMI (One Wire)

Energy saving functions

Smart Power

Screen saving functions

Pixel Shift, Low Bright

Ease of installation

• AC Out
• Carrying Handles

Other convenience

G sensor

Power

Standby power consumption

<0.5 W

Mains power

100 ~ 240 VAC, 50 ~ 60 Hz

Consumption (Typical)

85  W

comsumption(Max)

215 W

Operating conditions

Temperature range (operation)

0 ~ 40  °C

Temperature range (storage)

-20 ~ 60  °C

Relative humidity

20 ~ 80  %

Altitude

0 ~ 3000 m

MTBF

60,000  hour(s)

Sound

Built-in speakers

2 x 10W RMS

Accessories

Included accessories

• Remote Control
• Batteries for remote control
• Quick start guide
• AC Power Cord
• RS232 cable

Included Accessories

• Edge Alignment Kit (1 )-2pcs
• Edge Alignment Kit (2)-1pcs
• Logo guide
• Philips logo
• Thumbscrew (8pcs)
• RS232 daisy-chain cable

Stand

BM04642/00(optional)

Multimedia Applications

USB Playback Audio

• AAC
• M4A
• MP3
• WMA
• MP1
• MP2

USB Playback Picture

• BMP
• GIF
• JPEG
• JPG
• PNG

USB Playback Video

• MKV
• MP4
• MPG
• VOB
• 3GP
• AVI
• DAT
• FLV
• MOV
• TS
• WEBM

Miscellaneous

On-Screen Display Languages

• English
• French
• German
• Spanish
• Polish
• Turkish
• Russian
• Italian
• Simplified Chinese
• Traditional Chinese
• Arabic
• Japanese
• Danish
• Dutch
• Finnish
• Norwegian
• Portuguese
• Swedish

Regulatory approvals

• CE
• CCC
• CB
• CECP
• UL/cUL
• BSMI
• EAC
• EMF
• EnergyStar 7.0
• PSB
• VCCI
• FCC, Class A
• PSE

Warranty

3 year warranty
