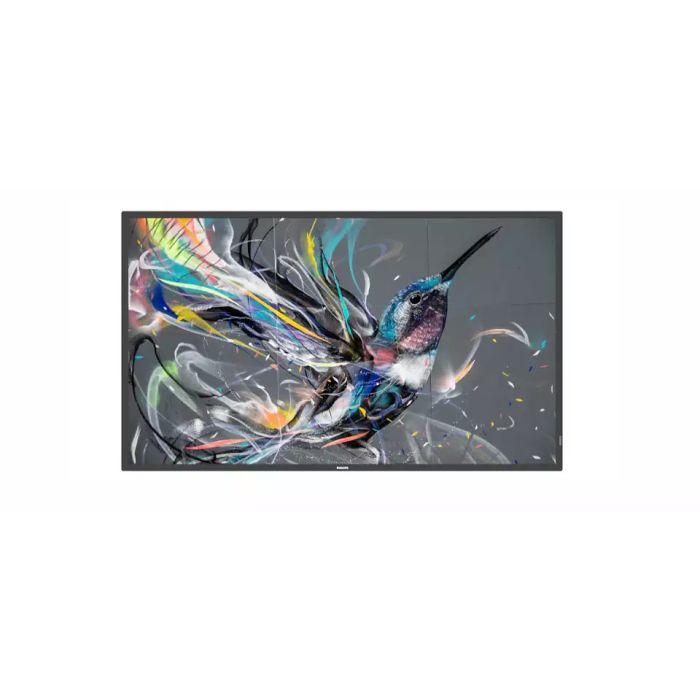

32BDL3550Q 32" FHD 18/7 Android Display

Be the first to review this product

A$0.00

In stock

SKU

32BDL3550Q

32BDL3550Q 32" FHD Android 8 CMND & Control SmartBrowser Failover Internal Player

Key Features:

Effortless setup. Total control.

Operate, monitor and maintain with CMND & Control
CMND & Create. Develop and launch your own content

Cost-effective system solution

Energy-saving automatic backlight control
Integrated media player. Easily schedule USB content
Easy control. Remotely manage networked displays
FailOver ensures content is always playing

Smart and powerful

Android SoC processor. Native and web apps
Connect and control your content over the internet
Connect and control your content via the cloud

Details

The 32BDL3550Q is a 32 inch FHD easy-setup 18/7 display with included SmartPlayer to allow for schedulded content management all from a single USB device. Powered by Android version 8.0 for deployment of Android and web apps directly to the display.

Included with HTML5 Chromium based SmartBrowser allows users to stream content to the device along with various other controls. The failover feature ensures an output is always displayed even in the event of the primary source disconnecting. CMND & Control provides network management through a LAN connection, giving both monitoring capabilites and input control. Also equipped with CMND & Create for simple drag-and-drop content publishing.

Key Features:

Effortless setup. Total control.

Operate, monitor and maintain with CMND & Control
CMND & Create. Develop and launch your own content

Cost-effective system solution

Energy-saving automatic backlight control
Integrated media player. Easily schedule USB content
Easy control. Remotely manage networked displays
FailOver ensures content is always playing

Smart and powerful

Android SoC processor. Native and web apps
Connect and control your content over the internet
Connect and control your content via the cloud

More Information

More Information
brand	Philips
Specifications	Picture/Display • Diagonal screen size: 31.5 inch / 80 cm • Panel resolution: 1920x1080p • Optimum resolution: 1920 x 1080 @ 60 Hz • Brightness: 350 cd/m² • Contrast ratio (typical): 4000:1 • Dynamic contrast ratio: 500,000:1 • Response time (typical): 8 ms • Aspect ratio: 16:9 • Viewing angle (H / V): 178 / 178 degree • Pixel pitch: 0.36375 x 0.36375 mm • Display colors: 16.7 Million • Panel technology: VA • Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, 3D MA deinterlacing, Dynamic contrast enhancement, Motion compens. deinterlacing, Progressive scan • Clinical image: D-Image preset (dicom part 14 compatible) • Operating system: Android 8.0 Supported Display Resolution • Computer formats 1920 x 1080 60Hz 1680 x 1050 60Hz 1600 x 1200 60Hz 1440 x 900 60Hz 1280 x 1024 60Hz 1280 x 800 60Hz 1280 x 720 60Hz 1152 x 870 75Hz 1024 x 768 60, 70, 75Hz 800 x 600 56, 60, 72, 75Hz 720 x 400 70Hz 640 x 480 60, 67, 72, 75Hz 1152 x 864 75Hz 832 x 624 75Hz • Video formats 576p 50Hz 576i 50Hz 480p 60Hz 480i 60Hz 1080p 50, 60Hz 1080i 50, 60Hz 3840 x 2160 30Hz 3840 x 2160 60Hz 720p 50,60 Hz Connectivity • Video input: DVI-I (x 1), HDMI 2.0 (x2), USB 2.0 (x2) • Audio input: 3.5 mm jack • Audio output: 3.5mm jack • External control: RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack Convenience • Energy saving functions: Smart Power • Tiled Matrix: Up to 15 x 15 • Start-up: Switch on delay, Switch on status, Boot on source • Start-up window: enable / disable Philips logo • Keyboard control: Lockable, Hidden • Network controllable: RS232, RJ45 • Signal loop through: RS232, IR Loopthrough • Placement: Landscape (18/7), Portrait (18/7) • Remote control signal: Lockable Dimensions • Bezel width: 11.9 (TLR) / 17.2 (B) mm • Set dimensions (W x H x D): 726.5 x 425.4 x 69.1(D@Handle) / 65.1(D@Wall mount) mm • Set dimensions in inch (W x H x D): 28.6 x 16.75 x 2.72 (D@Handle) / 2.56 (D@Wall mount)f inch • Wall Mount: 100mm x100mm, 200mm x 200mm ,M4 • Product weight: 5.31 kg • Product weight (lb): 11.71 lb Operating conditions • Temperature range (operation): 0 ~ 40 °C • Temperature range (storage): -20 ~ 60 °C • MTBF: 30,000 hour(s) • Altitude: 0 ~ 3000 m • Humidity range (operation)[RH]: 20 ~ 80% RH (No condensation) • Humidity range (storage) [RH]: 5 ~ 95% RH (No condensation) Power • Mains power: 100 - 240V~, 50-60Hz, 1.5A • Standby power consumption: <0.5 W • Consumption (Max): 80 W • Consumption (Typical): 50 W • Power Saving Features: Smart Power • Energy Label Class: G Sound • Built-in speakers: 2 x 10W RMS Multimedia Applications • USB Playback Video: MPEG, H.264, H.263, H.265 • USB Playback Picture: BMP, JPEG, PNG • USB Playback Audio: AAC, HEAAC, MPEG Accessories • Included accessories: AC Power Cord, RS232 cable, Remote Control, Batteries for remote control, Quick start guide • Included Accessories: IR sensor cable (1.8 m) (x1), RS232 daisy-chain cable, Philips logo (x1), USB Cover and screw (x2) • Stand: BM02541/BM05911(optional) Miscellaneous • Warranty: 3 year warranty • On-Screen Display Languages: English, French, German, Italian, Polish, Turkish, Russian, Simplified Chinese, Spanish, Traditional Chinese, Arabic, Japanese • Regulatory approvals: CB, CE, BSMI, CU, EPA, ETL, FCC, Class A, J-Moss, VCCI Internal Player • CPU: Dual core cortex A53 1.1G Hz, Dual core cortex A73 1.15G Hz • GPU: ARM Mali G51 • Memory: 2GB DDR3, 8GB
Description	The 32BDL3550Q is a 32 inch FHD easy-setup 18/7 display with included SmartPlayer to allow for schedulded content management all from a single USB device. Powered by Android version 8.0 for deployment of Android and web apps directly to the display. Included with HTML5 Chromium based SmartBrowser allows users to stream content to the device along with various other controls. The failover feature ensures an output is always displayed even in the event of the primary source disconnecting. CMND & Control provides network management through a LAN connection, giving both monitoring capabilites and input control. Also equipped with CMND & Create for simple drag-and-drop content publishing. Key Features: Effortless setup. Total control. Operate, monitor and maintain with CMND & Control CMND & Create. Develop and launch your own content Cost-effective system solution Energy-saving automatic backlight control Integrated media player. Easily schedule USB content Easy control. Remotely manage networked displays FailOver ensures content is always playing Smart and powerful Android SoC processor. Native and web apps Connect and control your content over the internet Connect and control your content via the cloud
